Car Turntable
Car Turntable

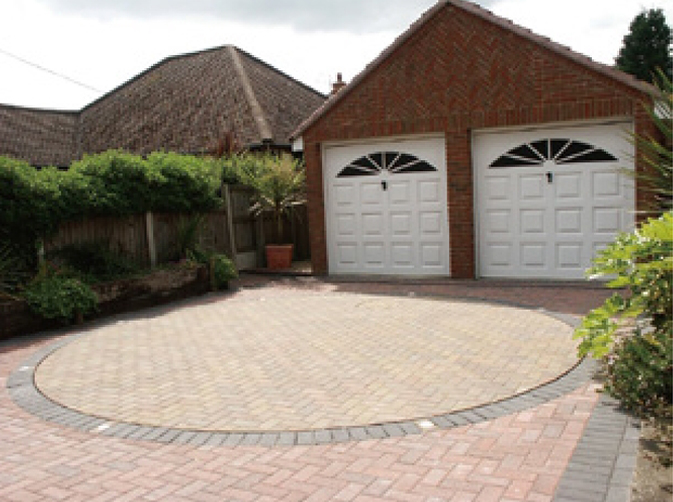

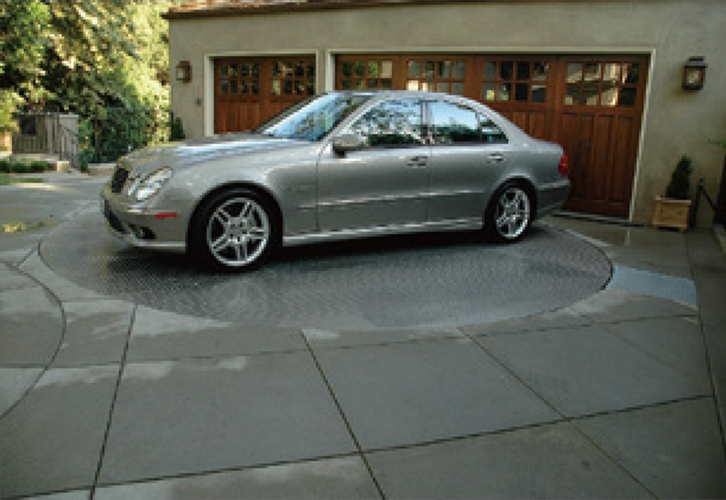

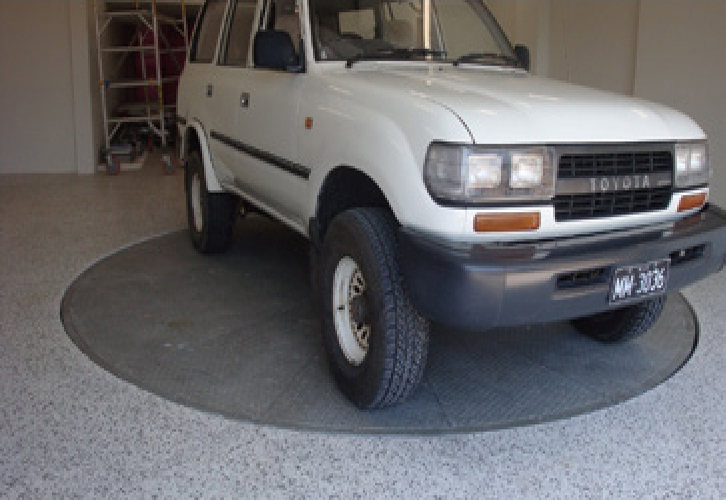

- A rotating platform designed to change a vehicle's direction, enabling safe and convenient entry and exit in confined spaces.
The following installation requirements must be met for a Car Turntable.
- A floor structure capable of supporting the turntable load is required.

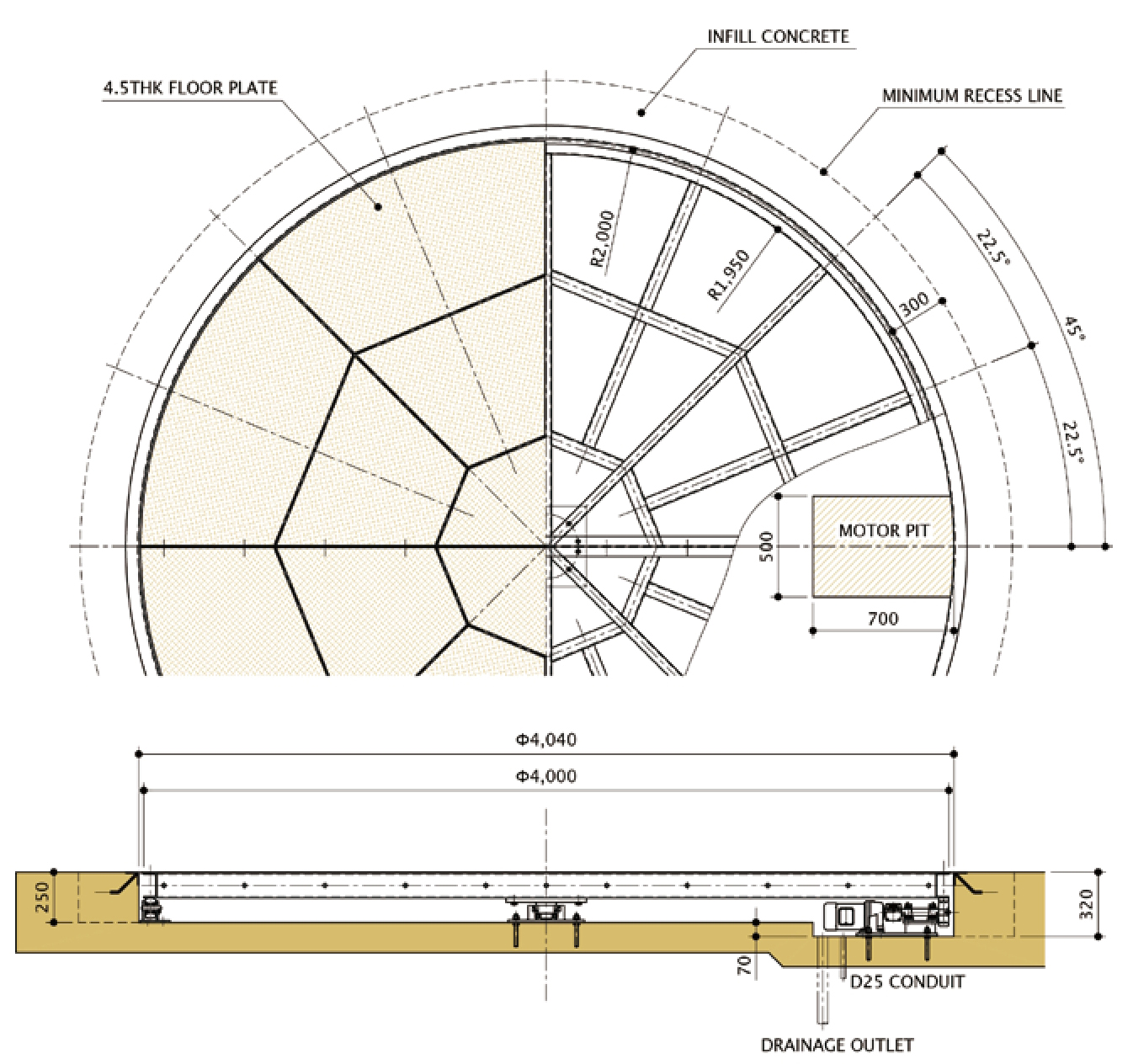

- A 250 mm motor pit with a drainage system is required.
- A three-phase power supply and circuit breaker must be provided near the turntable control location.
(Within 5 meters of the turntable.) - The motor pit should be located in an area with minimal traffic flow.
- If the turntable is installed on a sloped surface, the motor pit should be positioned on the lower side.
| SPECIFICATIONS |
|
|---|---|
| UNLOADING WEIGHT |
1,100 kg |
| LOADING WEIGHT |
3,600 kg |
| OUTSIDE DIAMETER |
4,000 mm |
| MOTOR POWER | 0.4 kW x 4P × 1/60 |
| R. P. M | 1750 x 1/60 x 150/4000 = 1.1 rpm |
| SPEED | 1.1 x 3.14 x 4 = 13.8 m/min |

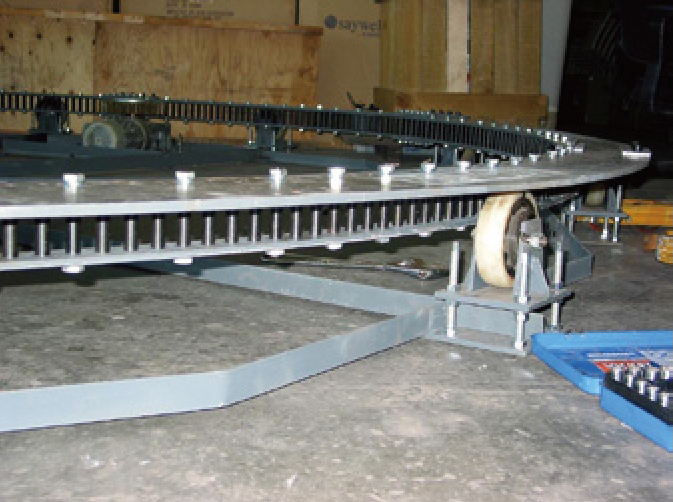

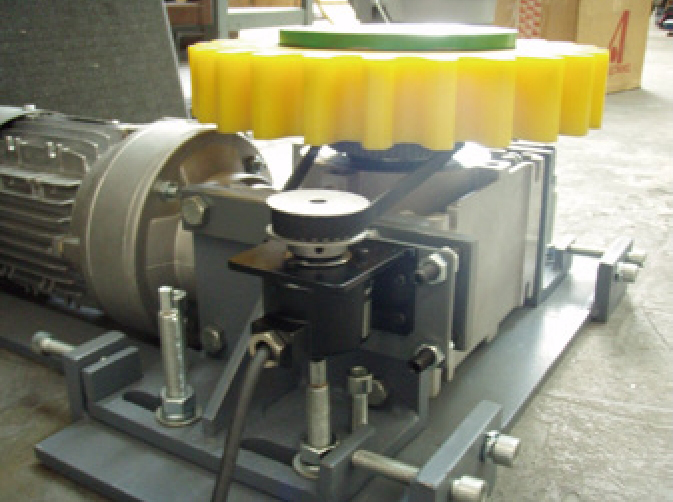

Turntable / Pin-gear Drive Type
