Cart Parking System

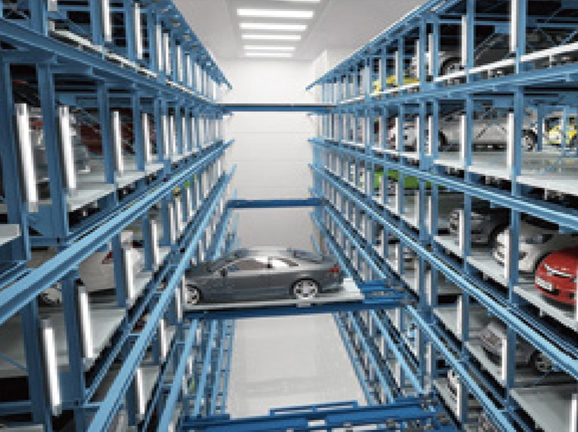

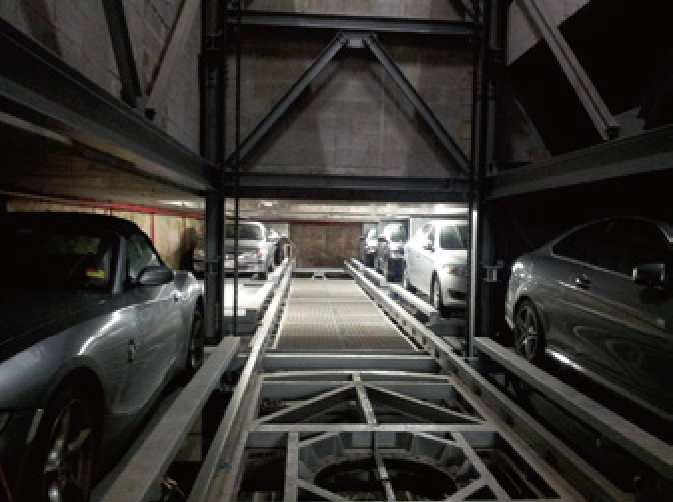

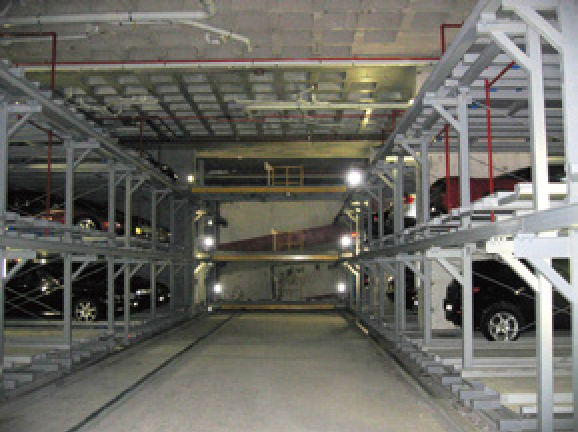

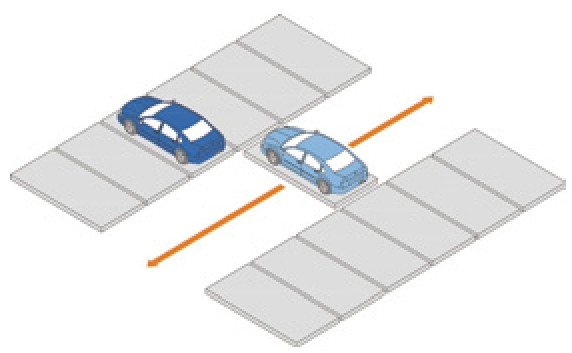

It is designed to move the car automatically by Lift vertically, then transfer it to Shuttle in any level. Then the Shuttle is travelled with taking car horizontally and place the car in its appropriate place in the parking storage.

Key Features

It is suitable for medium and large parking facilities.
It is very fast car parking time and retrieval time.
It is excellent to layout in the plane.
It is possible to use one or two Shuttle for each level.

SPECIFICATIONS
SYSTEM TYPE		SHUTTLE STACKER		PALLET SHIFTING	MOTOR	1.5 kW x 4P
CAR TYPE		SEDAN	SUV	PALLET SHIFTING	SPEED	APPROX. 20 m/min
DIMENSION	LENGTH	5,160 mm	5,000 mm	SAFETY DEVICE		HOOK STOPPER
	WIDTH	1,900 mm	1,900 mm			OVER RUN LIMIT SWITCH
	HEIGHT	1,550 mm	1,850 mm			PHOTO SENSOR
	WEIGHT	2,000 kg	2,200 kg			EMERGENCY STOP SWITCH
LIFTING	MOTOR	22 kW x 4P	30 kW x 4P			SIGNAL LAMP
LIFTING	SPEED	APPROX. 70 m/min		CONDUCT		PARKING CONDUCT MIRROR
SHUTTLE RUNNING	MOTOR	2.2 kW x 4P		CONDUCT		OPERATION SIGNAL LAMP
SHUTTLE RUNNING	SPEED	APPROX. 40 m/min		CONTROL		P. L. C & INVERTER
PALLET PICKING	MOTOR	1.5 kW x 4P		DOOR TYPE		AUTO DOOR (2UP/DN)
PALLET PICKING	SPEED	APPROX. 5 m/min		POWER SOURCE		AC 380V × 4P x 60Hz

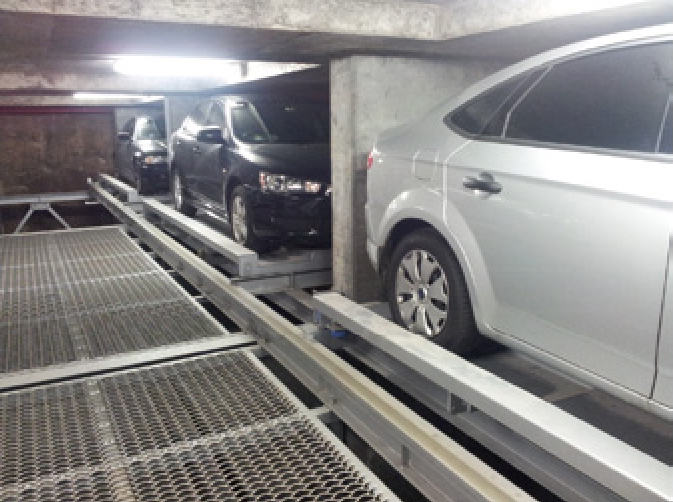

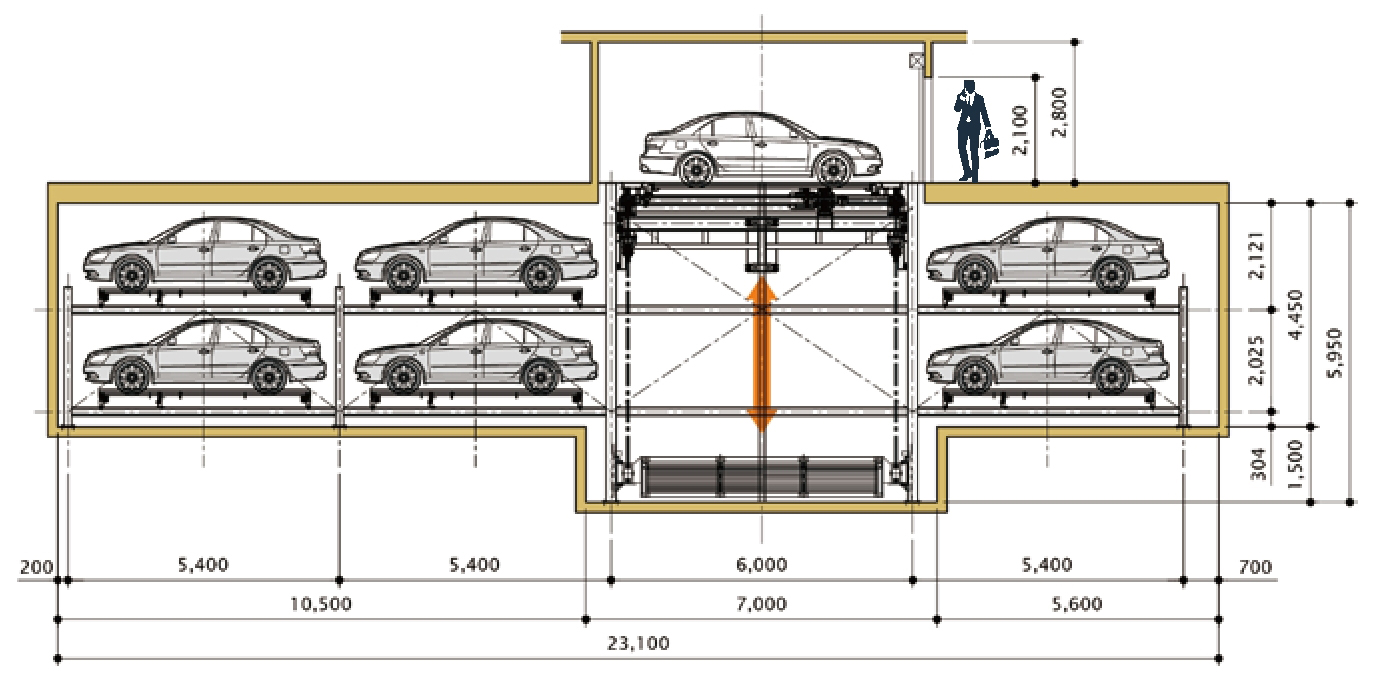

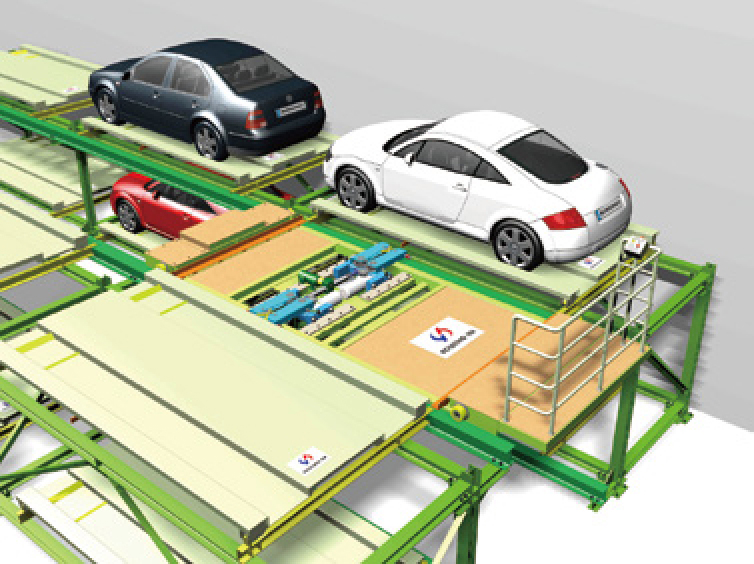

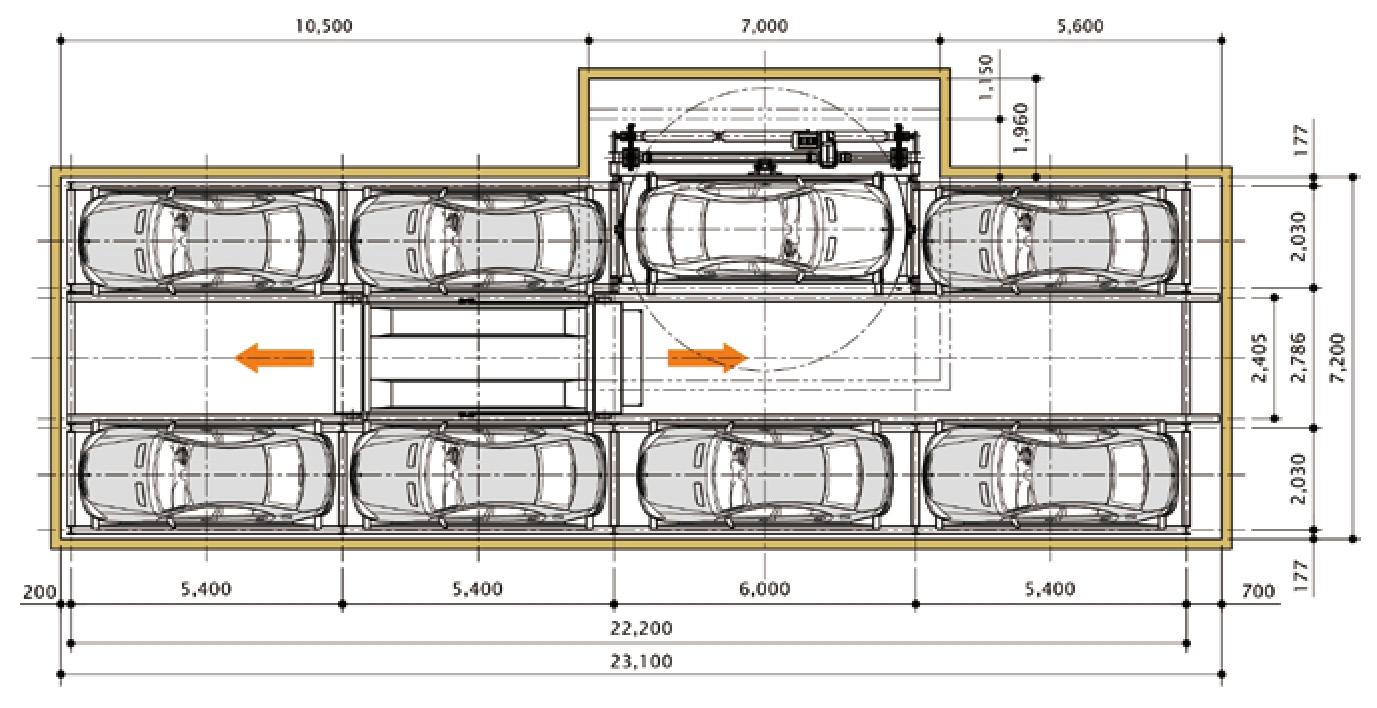

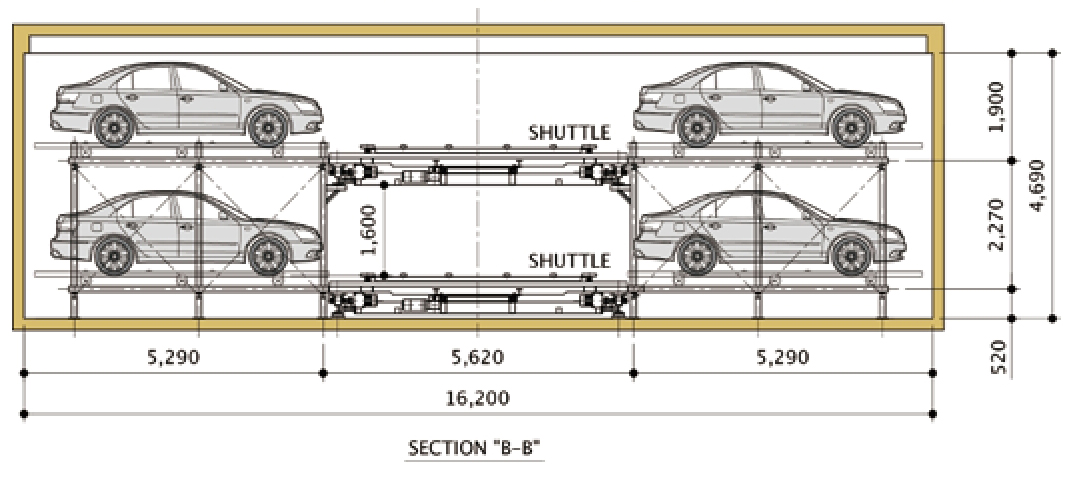

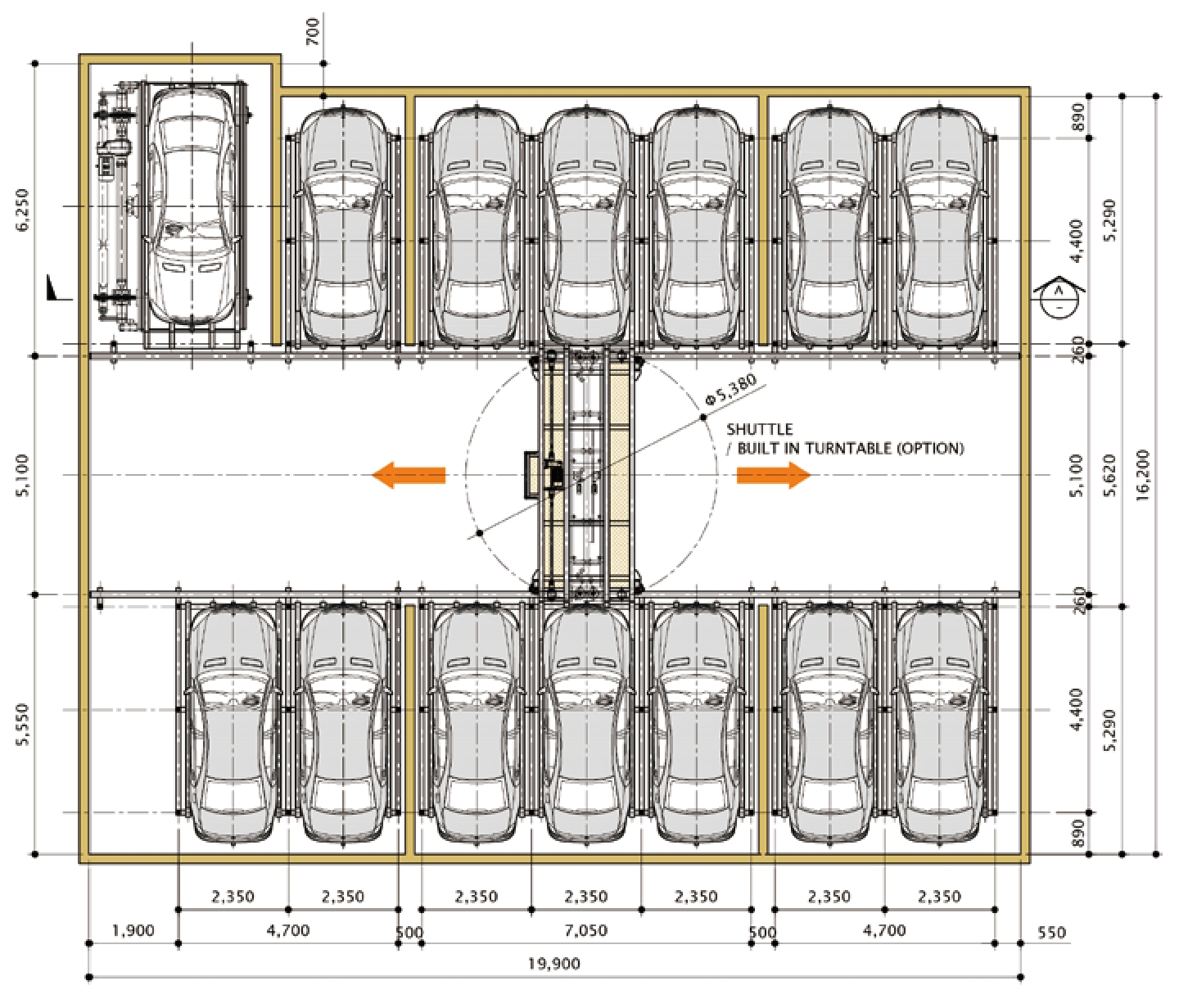

Sideways Running Type (Internal Turntable)

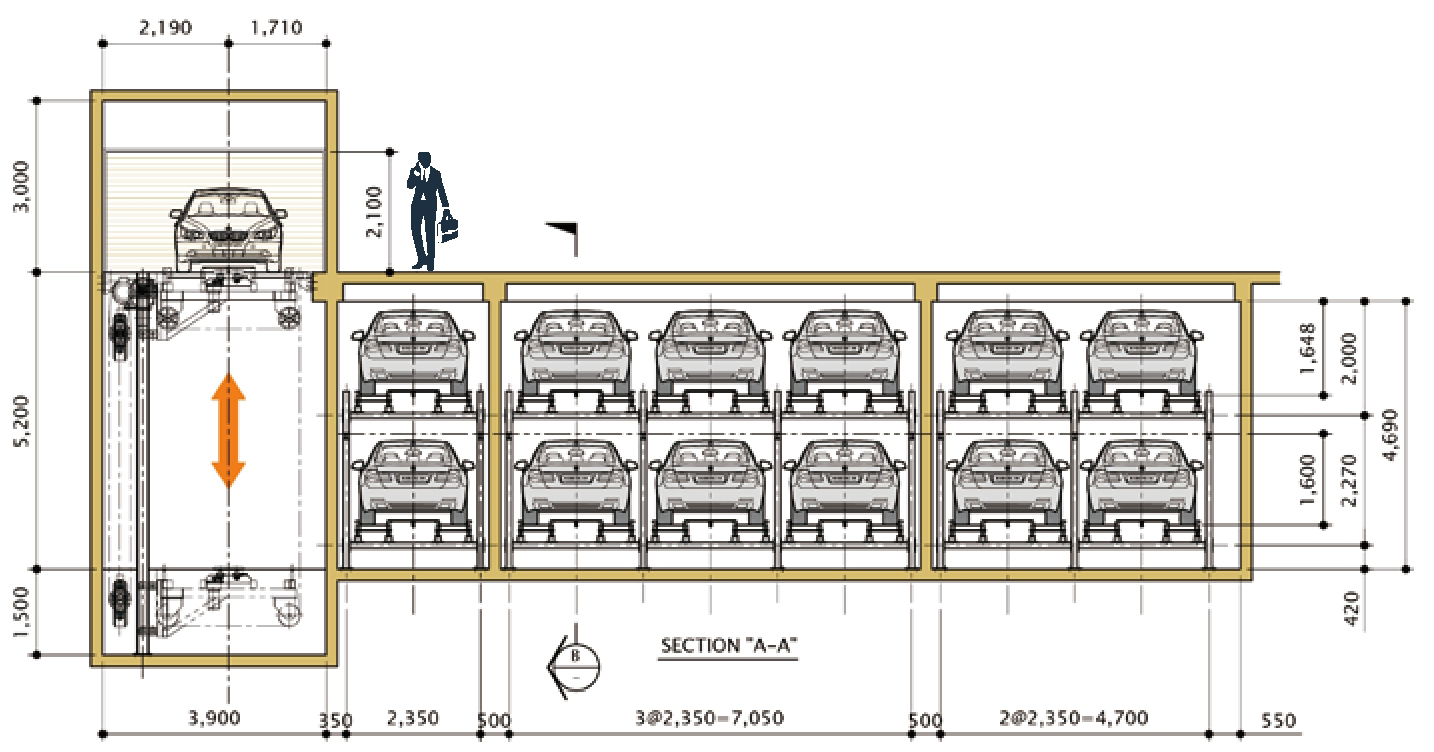

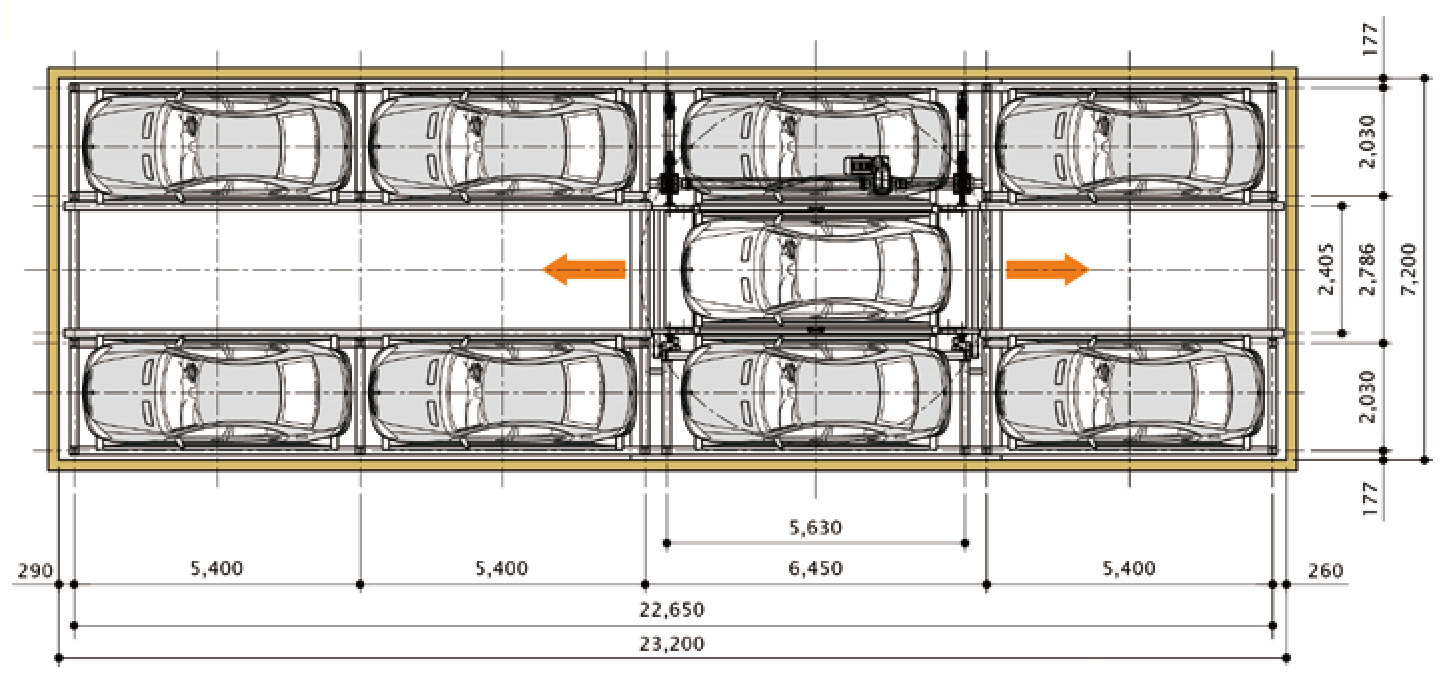

Lengthwise Running Type (Separated Lift)

SPECIFICATIONS
SYSTEM TYPE		SHUTTLE CAR STACKER
CAR TYPE		SEDAN	SUV
DIMENSION	LENGTH	5,160 mm	5,000 mm
	WIDTH	1,900 mm	1,900 mm
	HEIGHT	1,550 mm	1,850 mm
	WEIGHT	2,000 kg	2,200 kg
LIFTING	MOTOR	22 kW x 4P	30 kW x 4P
LIFTING	SPEED	APPROX. 50 m/min
SHUTTLE RUNNING	MOTOR	2.2 kW x 4P
SHUTTLE RUNNING	SPEED	APPROX. 40 m/min
PALLET PICKING	MOTOR	1.5 kW x 4P
PALLET PICKING	SPEED	APPROX. 5 m/min
PALLET SHIFTING	MOTOR	1.5 kW x 4P
PALLET SHIFTING	SPEED	APPROX. 20 m/min

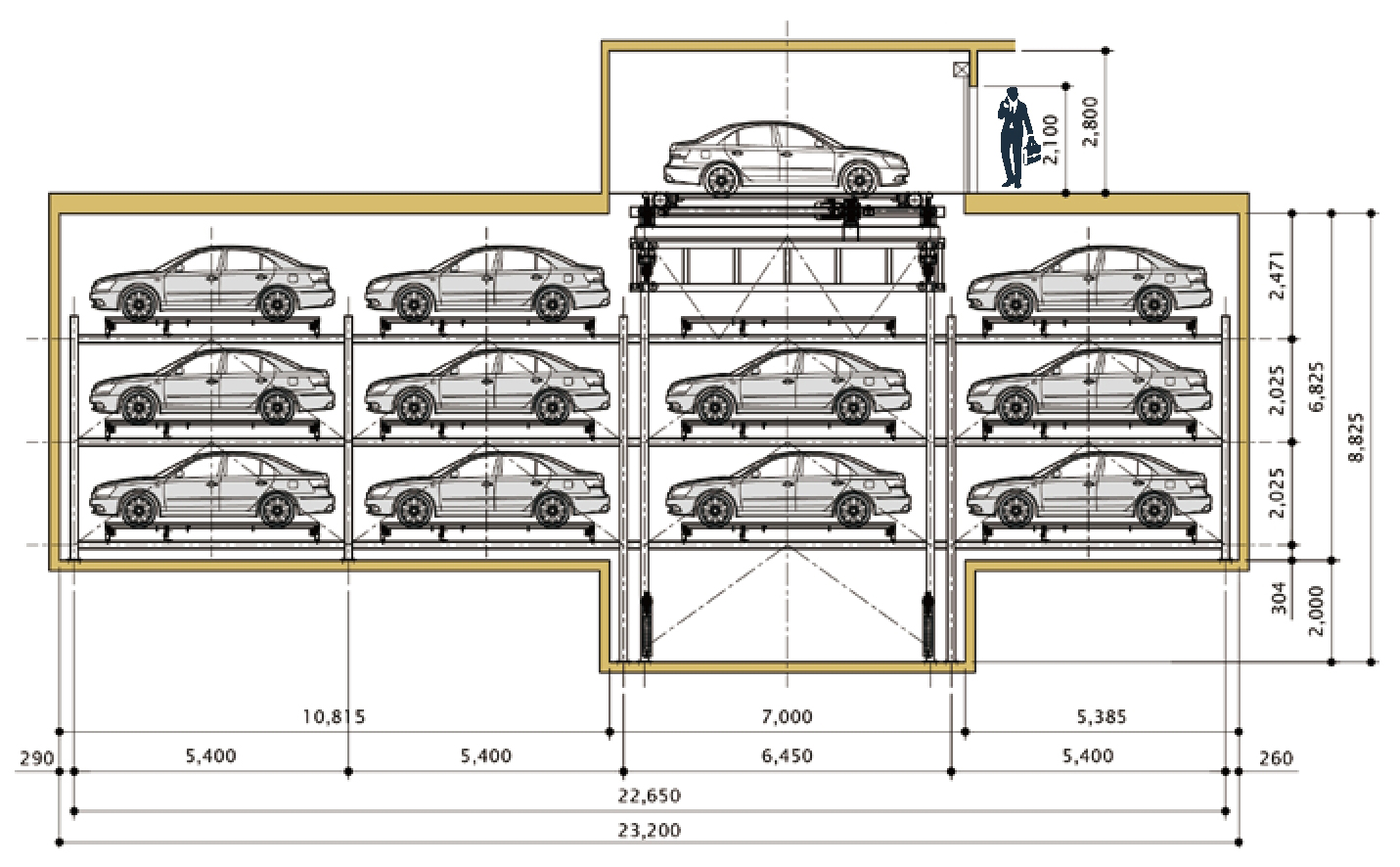

Lengthwise Running Type (Intergrated Lift)
