Multi-Level Circulation Parking System

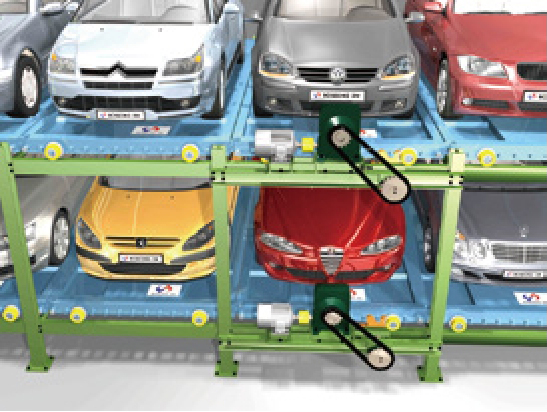

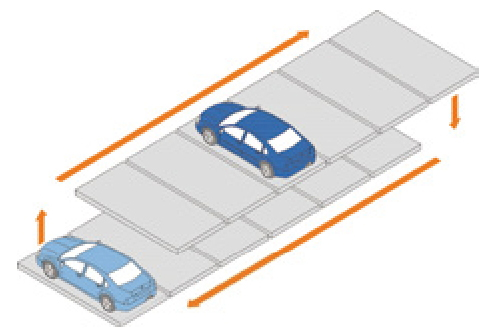

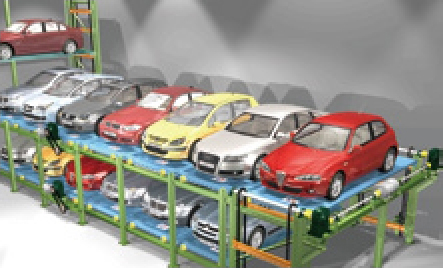

  • It is parking system designed to move the car up and down automatically by elevating pallets with lifters on both sides and circulating pallets continuous horizontally in multi story spaces.

Key Features

  • Generally, use in underground space.
  • It is suitable for medium scale (20~40 cars) of Parking system.
  • It is possible to park the car very minimal space.
  • It is very good for parking and retrieval time.

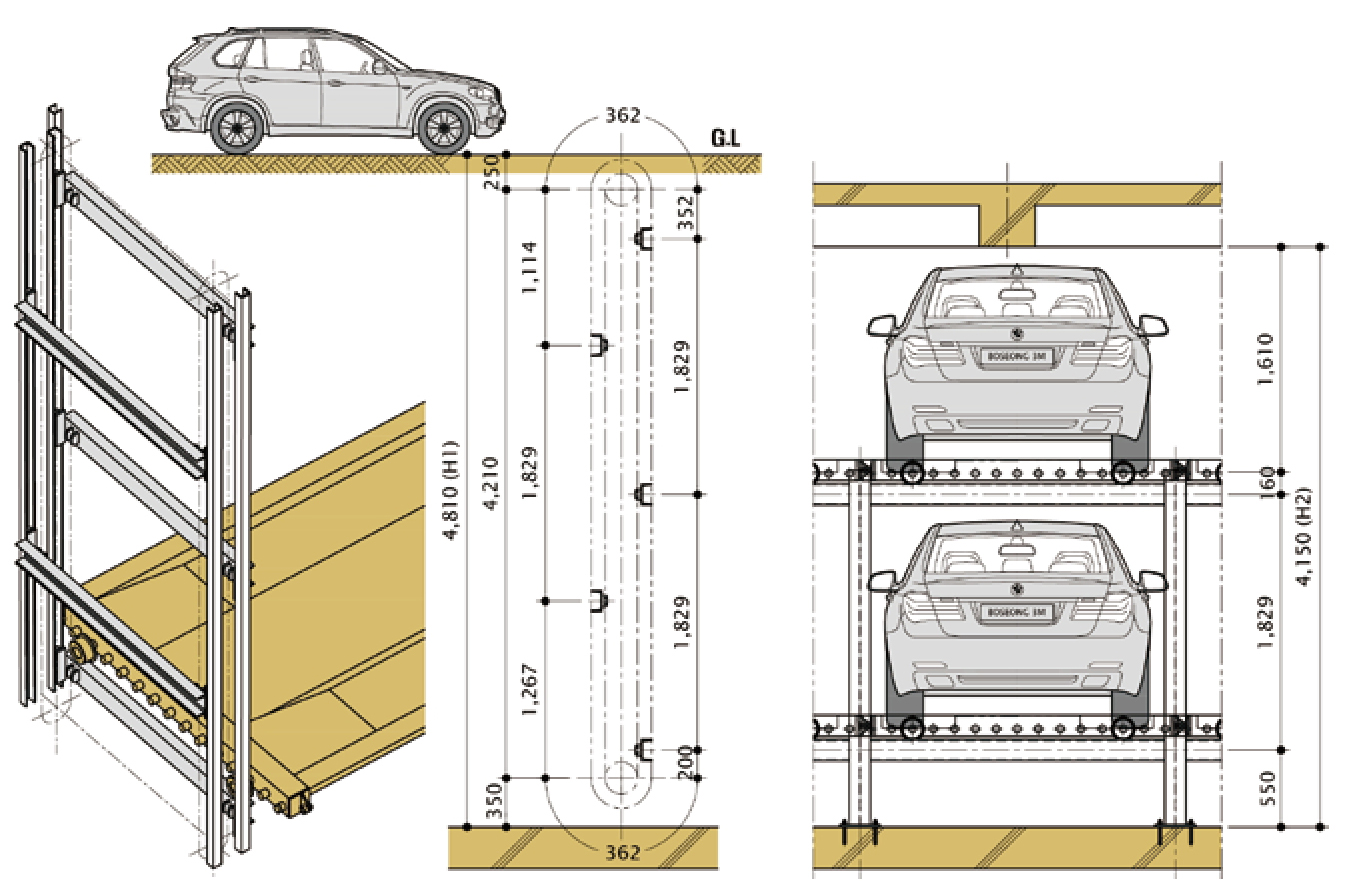

Circulation Rail Pitch

  • SEDAN (Height: max. 1,600): 38.1 (chain RS#120 pitch) x 48 links = 1,828.8 mm
  • SUV (Height: max. 2,100): 38.1 (chain RS#120 pitch) x 68 links = 2,362.2 mm

H1 Standard dimension

H1 PITCH 3 4 5 6 7 8 9 10 11 12 13 14
SEDAN 2,981 3,896 4,810 5,724 6,639 7,553 8,468 9,382 10,296 11,211 12,125 13,040
SUV 3,781 4,962 6,144 7,325 8,506 9,687 10,868 12,049 13,230 14,411 15,592 16,773

H2 Standard dimension

H2 FLOOR 2 3 4 5
SEDAN 4,150 5,860 7,570 9,280
SUV 5,150 7,410 9,670 11,930

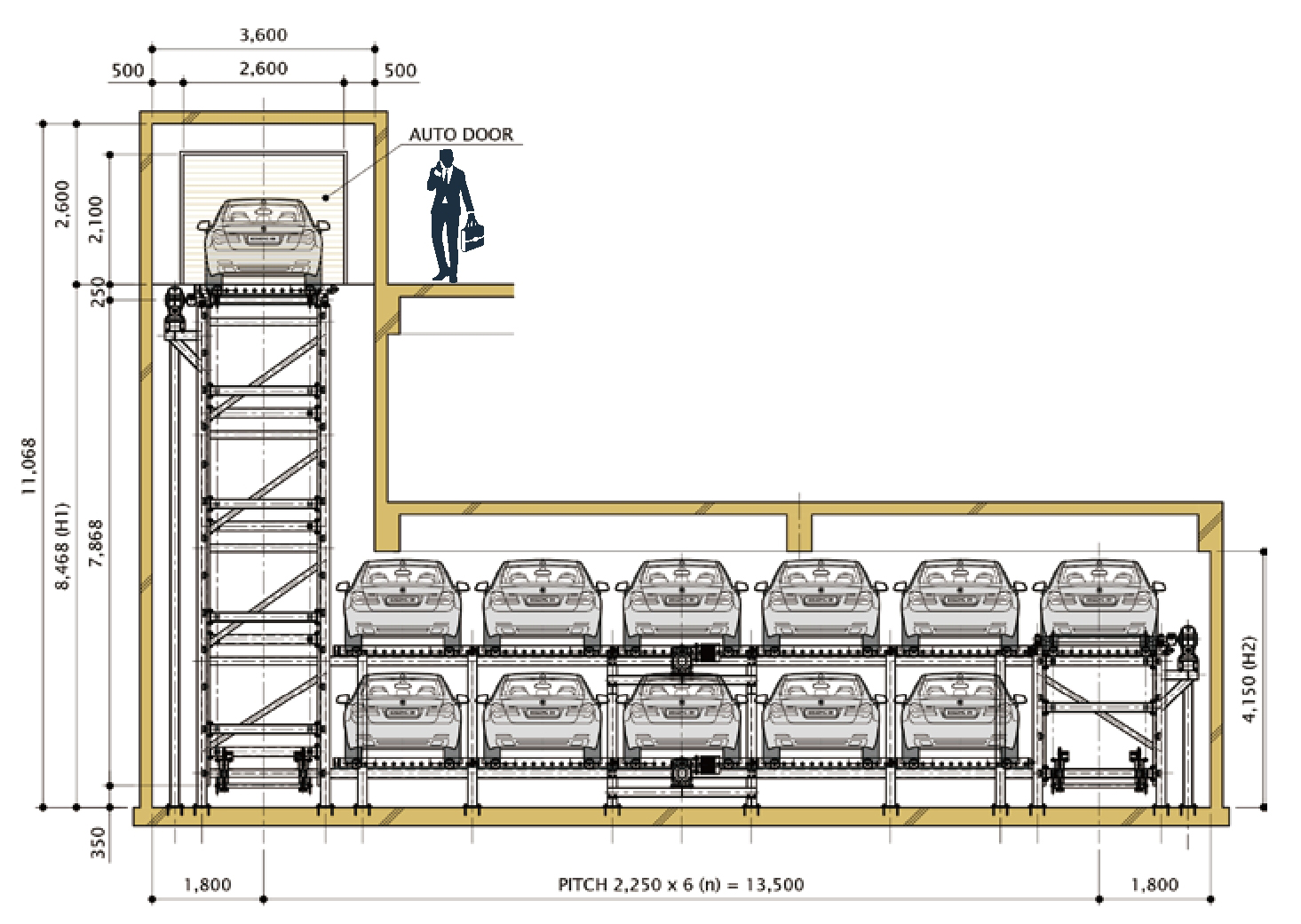

Upper Entrance Type

SPECIFICATIONS
SYSTEM TYPE BOX CYCLE CAR STACKER
CAR TYPE SEDAN SUV
DIMENSION LENGTH 5,160 mm 5,000 mm
WIDTH 1,900 mm 1,900 mm
HEIGHT 1,550 mm 1,850 mm
WEIGHT 2,000 kg 2,200 kg
LIFTING MOTOR 15 kW 15 kW
SPEED 15 m/min 12 m/min
SLIDING MOTOR 3.7 ~ 5.5 kW 3.7 ~ 5.5 kW
SPEED 15 m/min 15 m/min
POWER SOURCE AC 380V × 4P x 60Hz

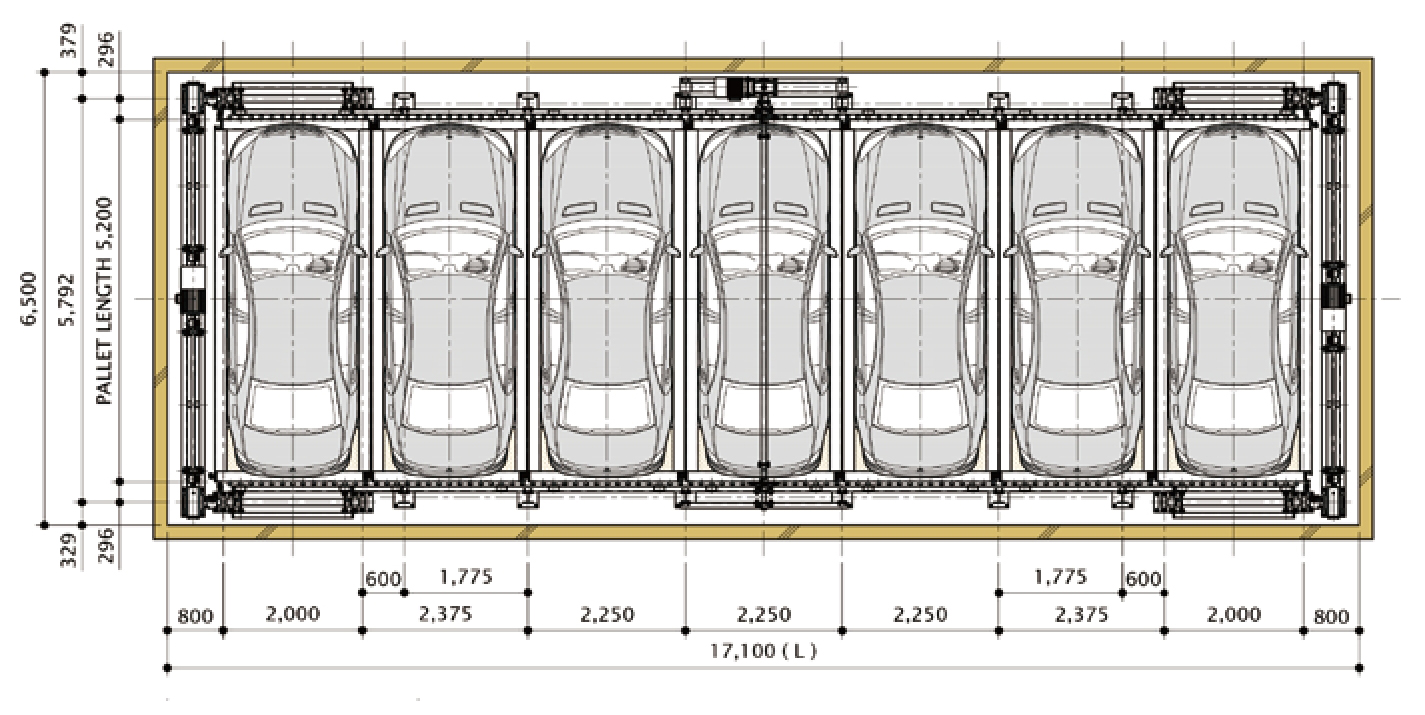

Standard Dimension

L(mm) 2 FLOOR 6 BAYS 8 10 12 14 16 18 20
3 FLOOR
 8 BAYS
 11 14 17 20 23 26 29
4 FLOOR
 10 BAYS
 14 18 22 26 30 34 38
5 FLOOR 12 BAYS 17 22 27 32 37 - -
DIMESION 10,350 12,600 14,850 17,100 19,350 21,600 23,850 26,100

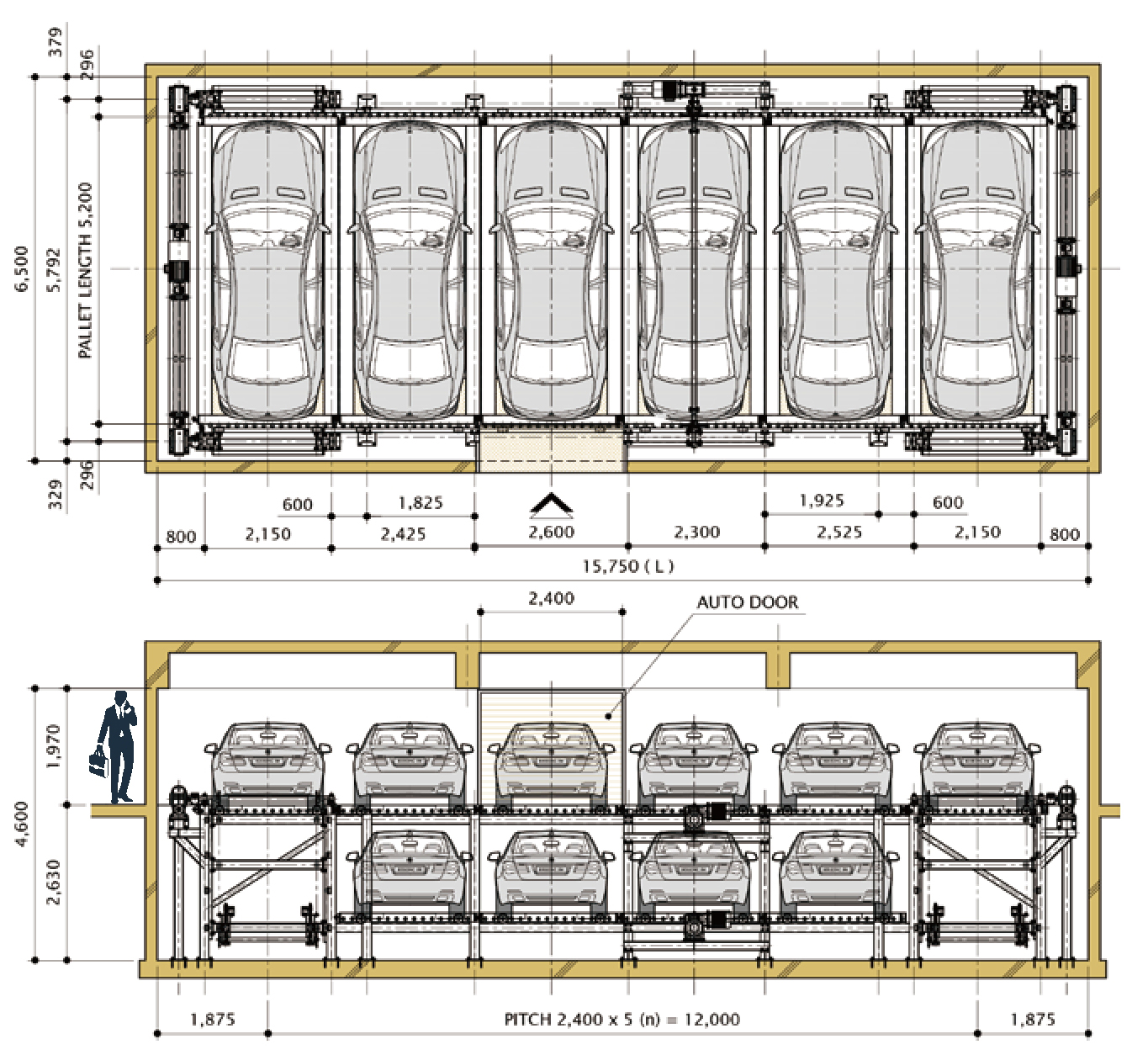

Direct Entrance Type

SPECIFICATIONS
SYSTEM TYPE BOX CYCLE CAR STACKER
CAR TYPE SEDAN SUV
DIMENSION LENGTH 5,160 mm 5,000 mm
WIDTH 1,900 mm 1,900 mm
HEIGHT 1,550 mm 1,850 mm
WEIGHT 2,000 kg 2,200 kg
LIFTING MOTOR 15 kW 15 kW
SPEED 15 m/min 12 m/min
SLIDING MOTOR 3.7 ~ 5.5 kW 3.7 ~ 5.5 kW
SPEED 15 m/min 15 m/min
POWER SOURCE AC 380V × 4P x 60Hz

Standard Dimension

L(mm) 2 FLOOR 6 BAYS 8 10 12 14 16 18 20
3 FLOOR
 8 BAYS
 11 14 17 20 23 26 29
4 FLOOR
 10 BAYS
 14 18 22 26 30 34 38
5 FLOOR 12 BAYS 17 22 27 32 37 - -
DIMESION 10,350 13,350 15,750 18,150 20,550 22,950 25,350 27,750

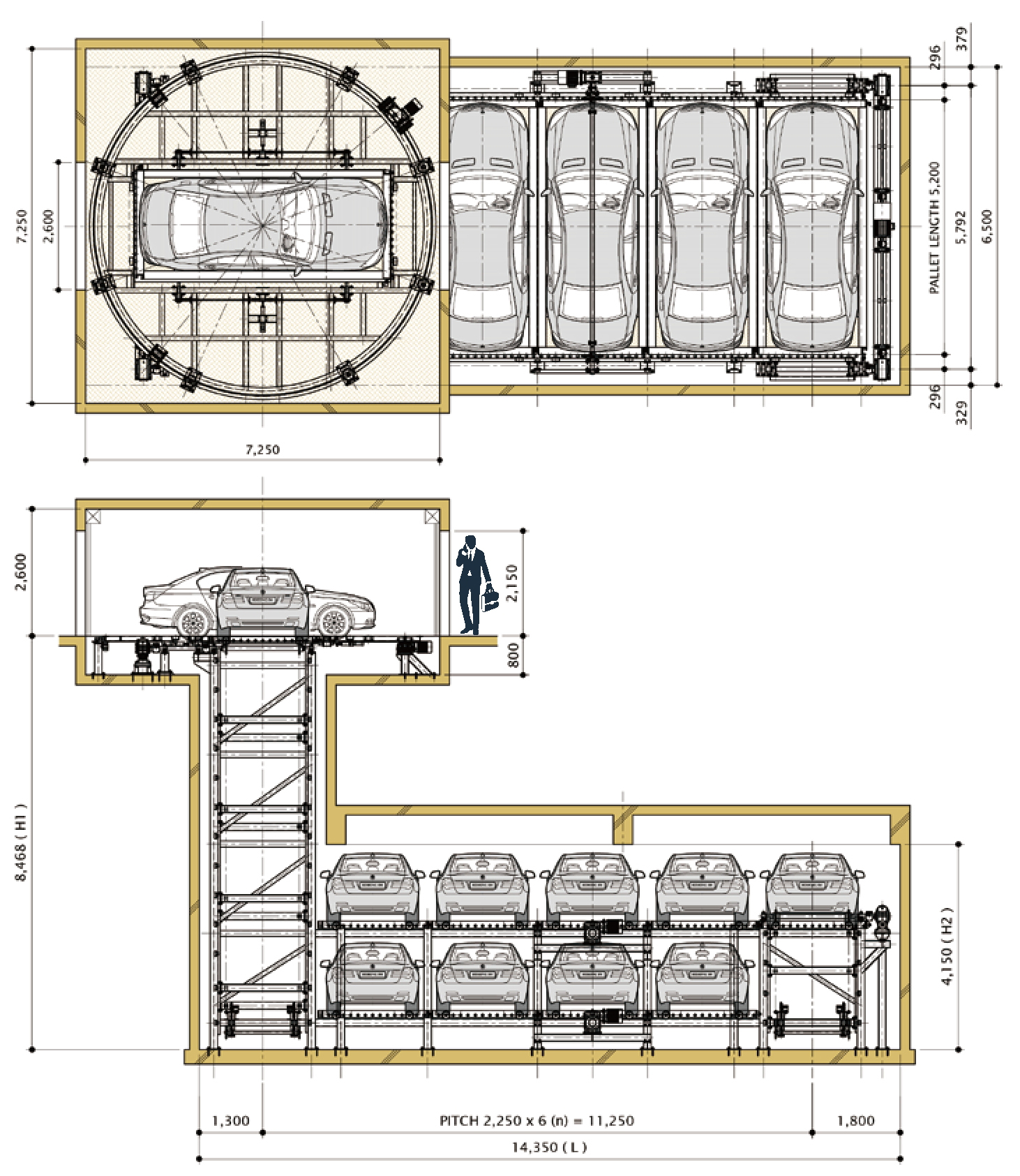

Upper Entrance Type (Internal Turn Table type)

SPECIFICATIONS
SYSTEM TYPE BOX CYCLE CAR STACKER
CAR TYPE SEDAN SUV
DIMENSION LENGTH 5,160 mm 5,000 mm
WIDTH 1,900 mm 1,900 mm
HEIGHT 1,550 mm 1,850 mm
WEIGHT 2,000 kg 2,200 kg
LIFTING MOTOR 15 kW 15 kW
SPEED 15 m/min 12 m/min
SLIDING MOTOR 3.7 ~ 5.5 kW 3.7 ~ 5.5 kW
SPEED 15 m/min 15 m/min
POWER SOURCE AC 380V × 4P x 60Hz

Standard Dimension

L(mm) 2 FLOOR 6 BAYS 8 10 12 14 16 18 20
3 FLOOR
 8 BAYS
 11 14 17 20 23 26 29
4 FLOOR
 10 BAYS
 14 18 22 26 30 34 38
5 FLOOR 12 BAYS 17 22 27 32 37 - -
DIMESION 10,350 12,100 14,350 16,600 18,850 21,100 23,350 25,600
