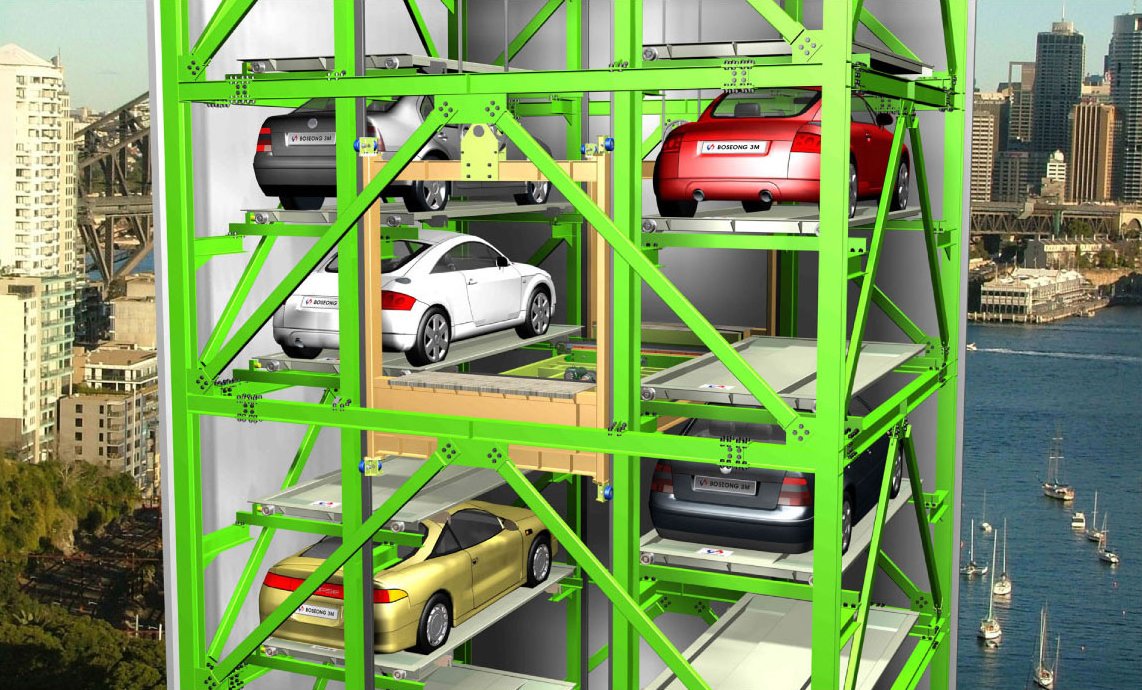

Elevator Parking System

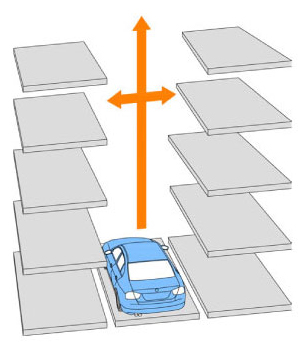

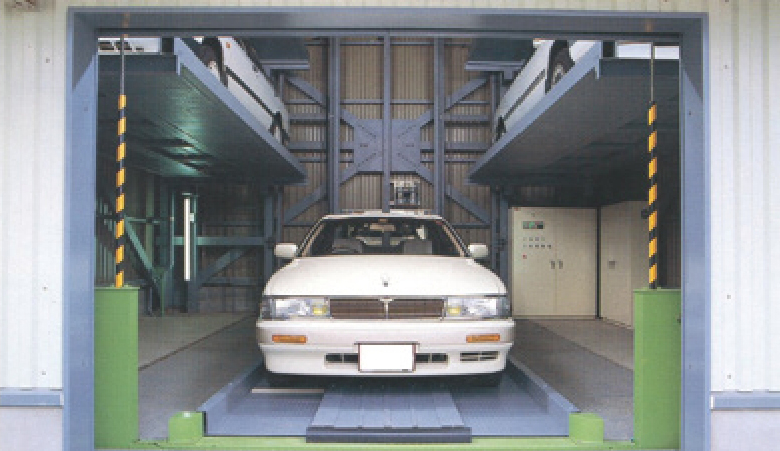

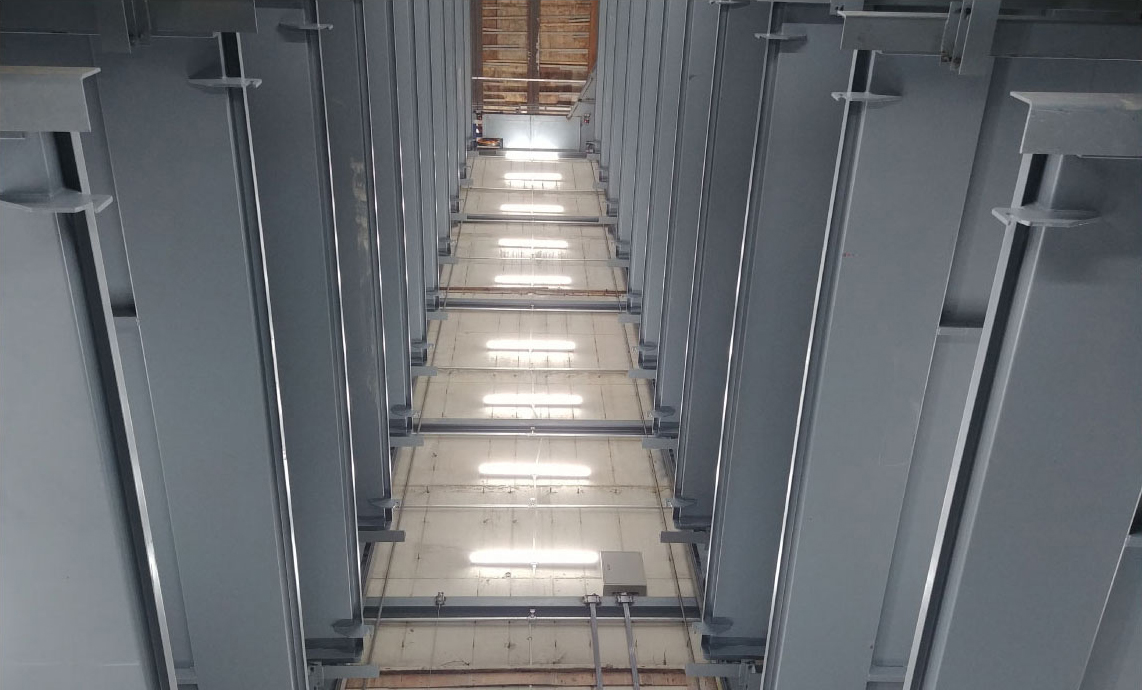

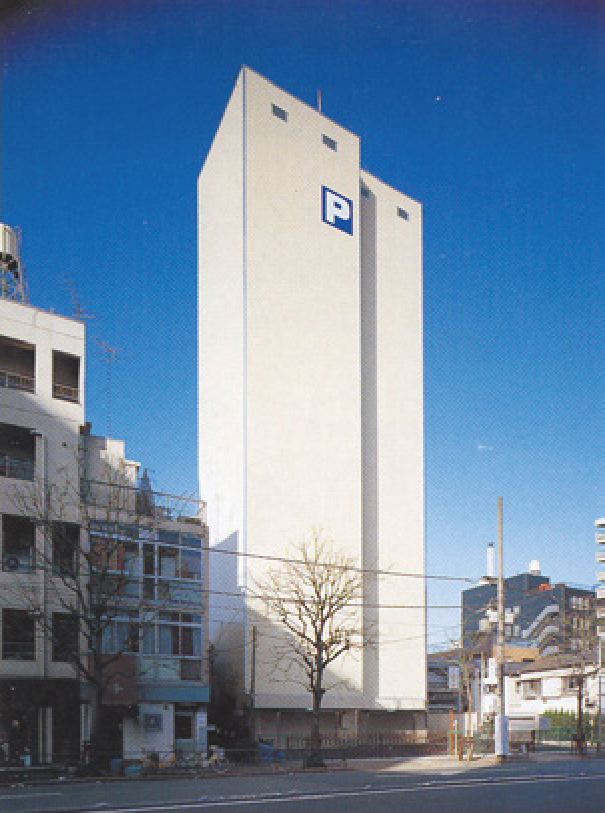

  • It is Parking System that is designed to move the car on pallet in the Lifter vertically in the Multi story level, then the car is moved left or right horizontally by special device.

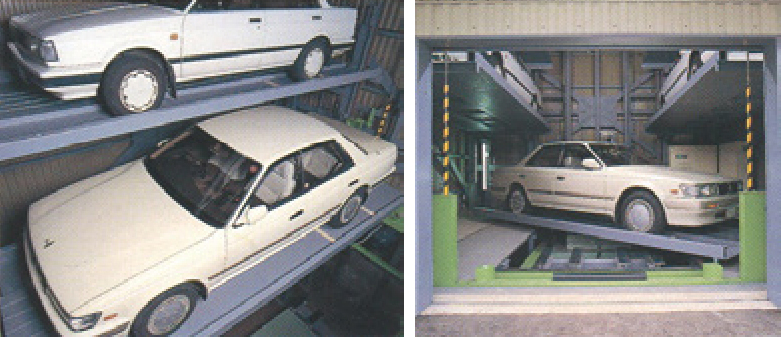

Key Features

  • It is very simple for parking and retrieval procedure.
  • Easy Maintenance.
  • It is very fast for Parking and retrieval time.
  • It is possible to design the Parking system in the building or standalone (Exterior).

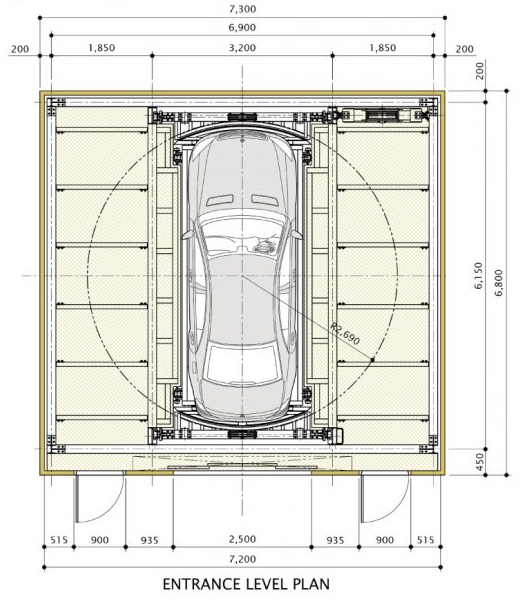

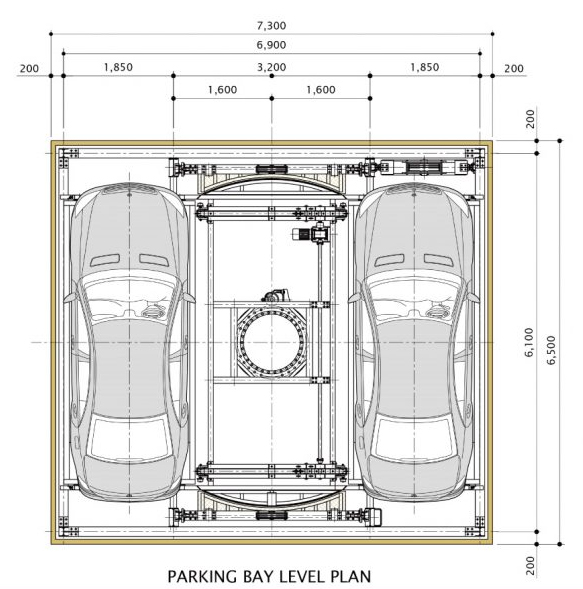

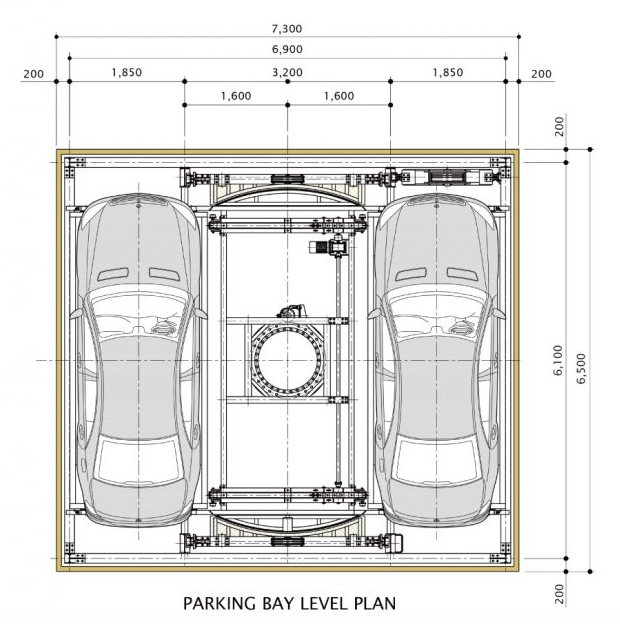

Upper Entrance Type (Internal Turn Table)

SPECIFICATIONS
SYSTEM TYPE ELEVATOR CAR STACKER SLIDING MOTOR 1.5 kW x 4P
  CAR TYPE SEDAN SUV SPEED APPROX. 30 m/min
DIMENSION LENGTH 5,160 mm 5,000 mm TURN TABLE MOTOR 2.2 kW x 4P
WIDTH 1,900 mm 1,900 mm SPEED APPROX. 30 m/min
HEIGHT 1,550 mm 1,850 mm LIFTING TYPE WIRE ROPE
WEIGHT 2,000 kg 2,200 kg CONTROL P.L.C & INVERTER
LIFTING MOTOR 22 kW x 4P 30 kW x 4P CONTROL AUTO DOOR (2UP/DN)
SPEED APPROX. 70 m/min POWER SOURCE AC 380V × 4P x 60Hz

H Standard Dimension

H(mm)PARKING BAYS 12 14 16 18 20 22 24 26
SEDAN 16,150 17,800 19,450 21,100 22,750 24,400 26,050 27,700
SUV 19,400 21,550 23,700 25,850 28,000 30,150 32,300 34,450
PARKING BAYS 28 30 32 34 36 38 40 42
SEDAN 29,350 31,000 32,650 34,300 35,950 37,600 39,250 40,900
SUV 36,600 38,750 40,900 43,050 45,200 47,350 49,500 51,650

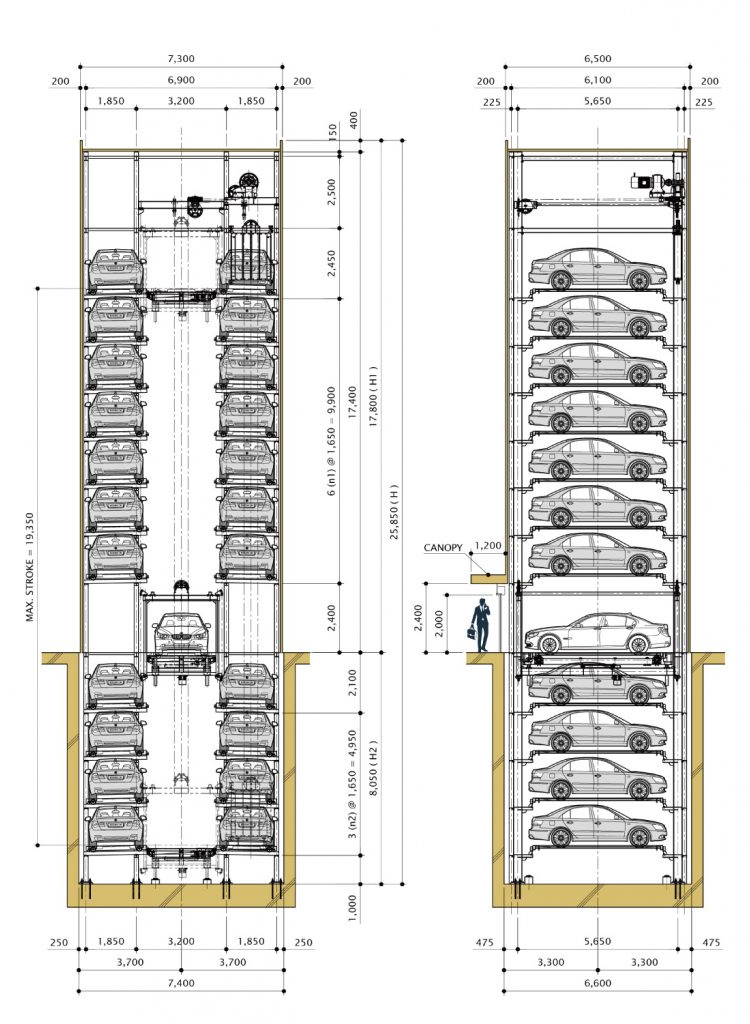

Upper Entrance Type (Internal Turn Table)

SPECIFICATIONS
SYSTEM TYPE ELEVATOR CAR STACKER SLIDING MOTOR 1.5 kW x 4P
  CAR TYPE SEDAN SUV SPEED APPROX. 30 m/min
DIMENSION LENGTH 5,160 mm 5,000 mm TURN TABLE MOTOR 2.2 kW x 4P
WIDTH 1,900 mm 1,900 mm SPEED APPROX. 30 m/min
HEIGHT 1,550 mm 1,850 mm LIFTING TYPE WIRE ROPE
WEIGHT 2,000 kg 2,200 kg CONTROL P.L.C & INVERTER
LIFTING MOTOR 22 kW x 4P 30 kW x 4P CONTROL AUTO DOOR (2UP/DN)
SPEED APPROX. 70 m/min POWER SOURCE AC 380V × 4P x 60Hz

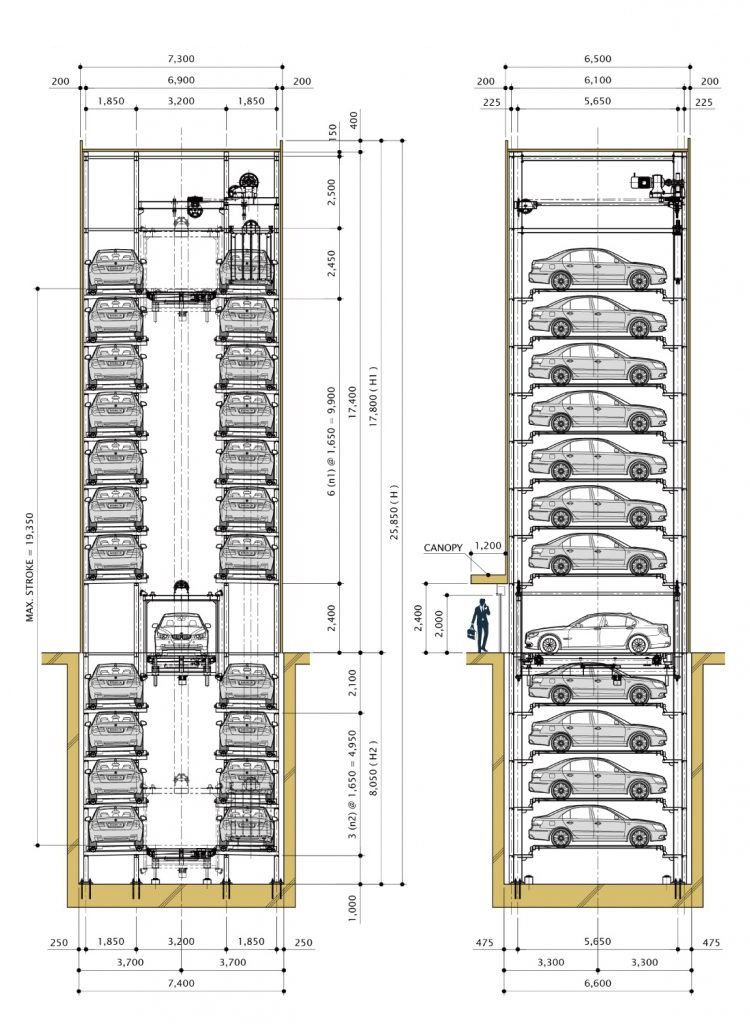

H1/H2 Standard Dimension

H1(mm)PARKING BAYS 12 14 16 18 20 22 24 26
SEDAN 16,150 17,800 19,450 21,100 22,750 24,400 26,050 27,700
SUV 19,400 21,550 23,700 25,850 28,000 30,150 32,300 34,450
PARKING BAYS 28 30 32 34 36 38 40 42
SEDAN 29,350 31,000 32,650 34,300 35,950 37,600 39,250 40,900
SUV 36,600 38,750 40,900 43,050 45,200 47,350 49,500 51,650
H2(mm)PARKING BAYS 2 4 6 8 10 12 14 16
SEDAN 3,100 4,750 6,400 8,050 9,700 11,350 13,000 14,650
SUV 3,600 5,750 7,900 10,050 12,200 14,350 16,500 18,650
