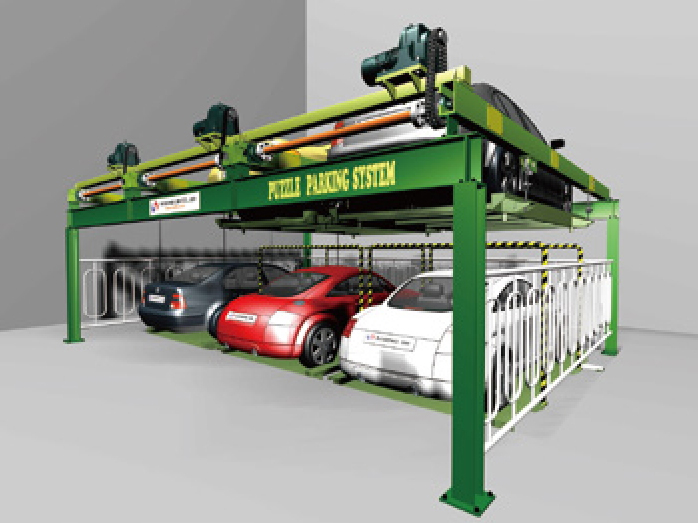

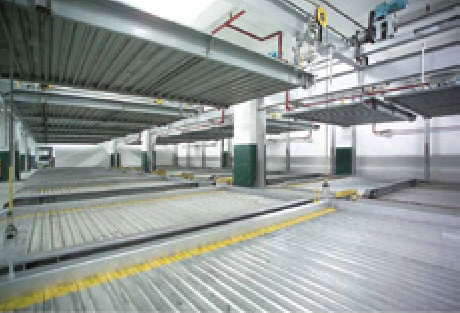

Puzzle Parking System
- 2 Level - If you want to retrieve the car of any top Level in the 2 Level System, it is possible to down the car of top Level to bottom level after you move the pallet in low level horizontally.

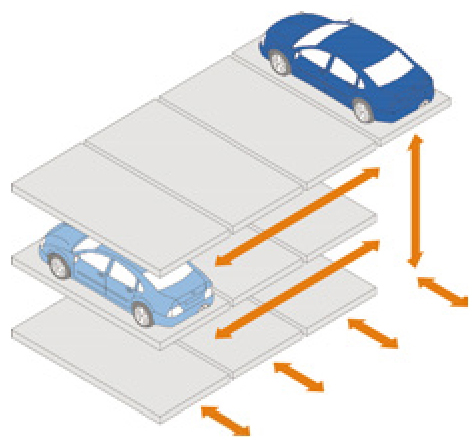

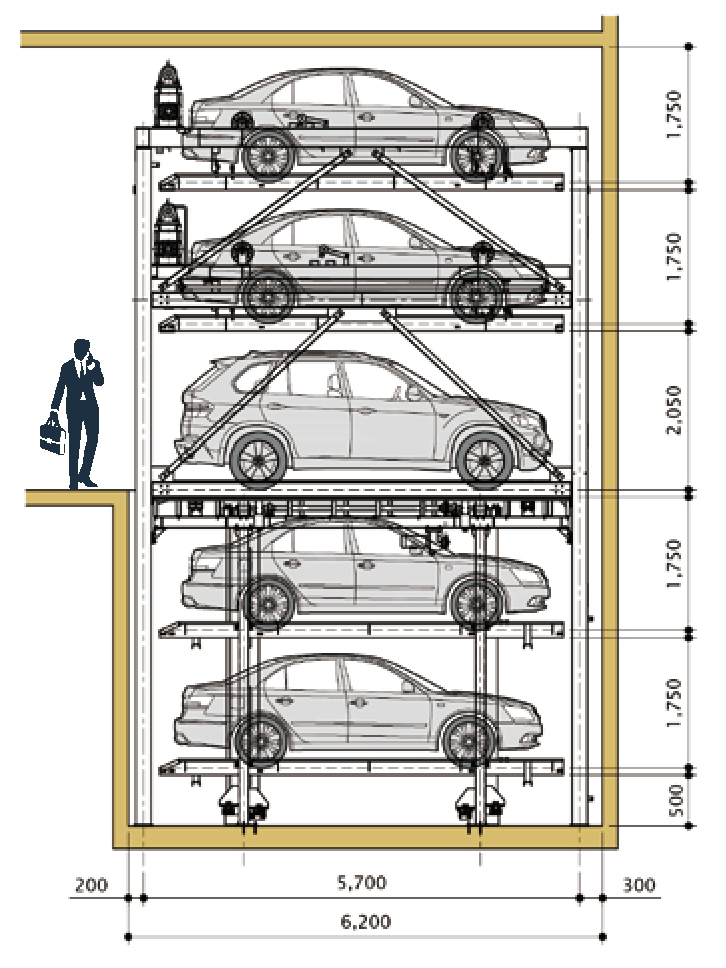

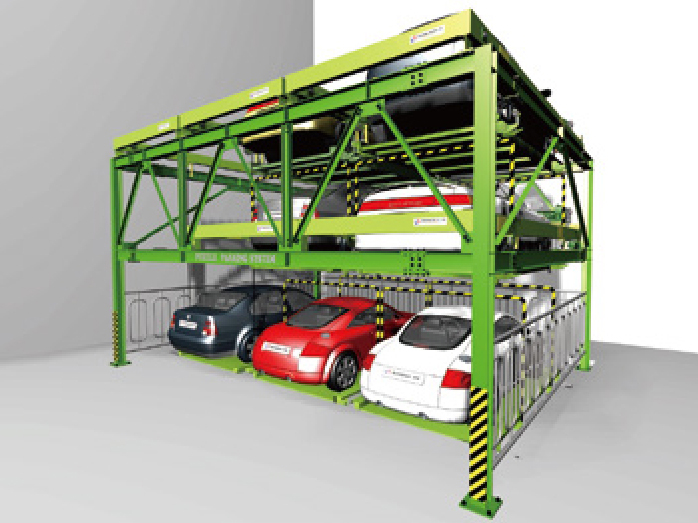

- Multi Level - If you want to park or retrieve the car of any upper level in the Multi Level System, it is possible to down the car of upper level to bottom level after you move the pallet in low Level horizontally, the pallets of top level are moving up and down, the pallets of bottom level are moving horizontally, and the pallets of middle levels are moving up, down and moving horizontally.
Key Features
- It is possible to retrieve the specific car without removing the other car.
- Easy to install, dis-assemble and re-install.
- It provide fast parking and fast retrieval time.
- The cost is much lower than conventional parking lot.

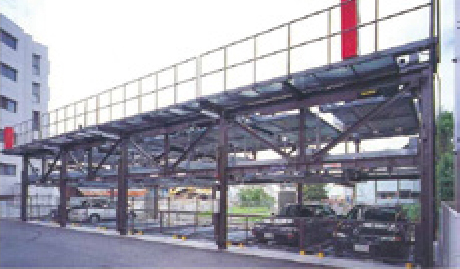

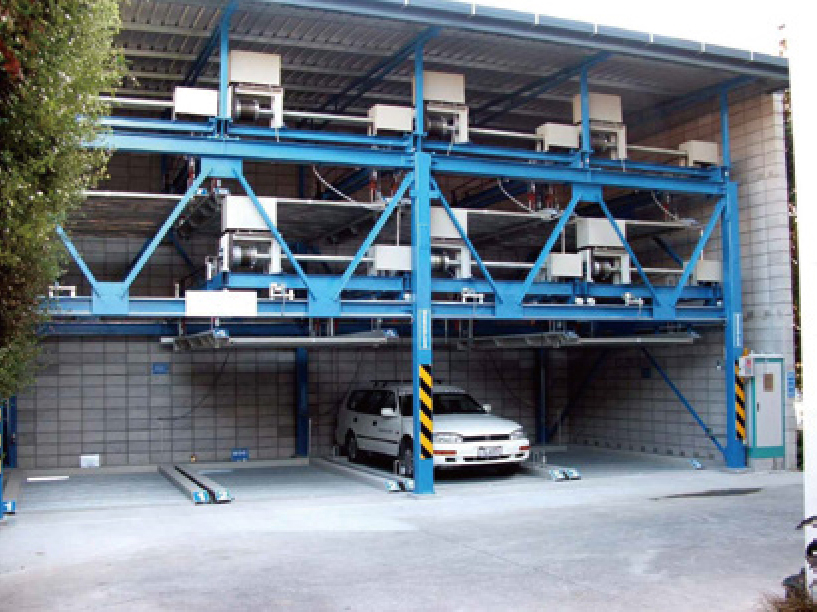

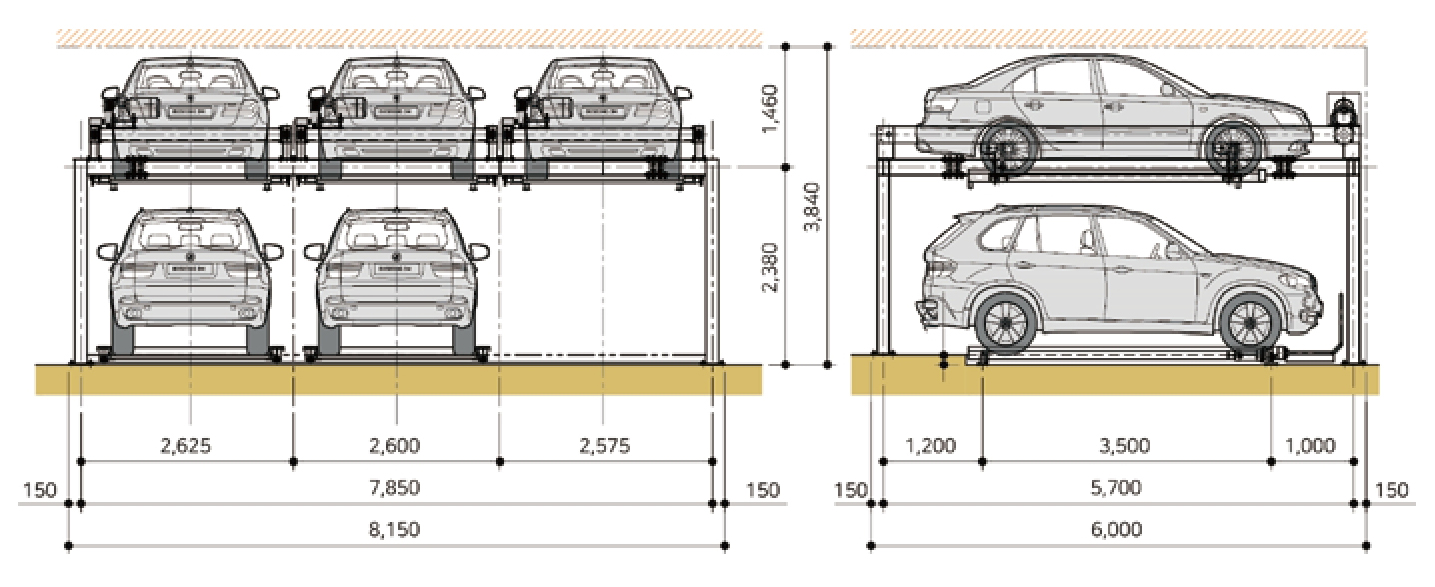

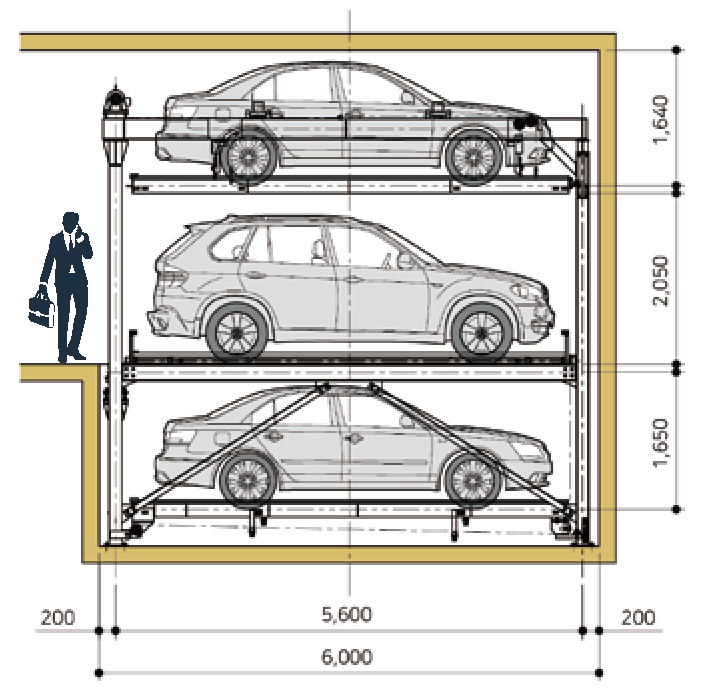

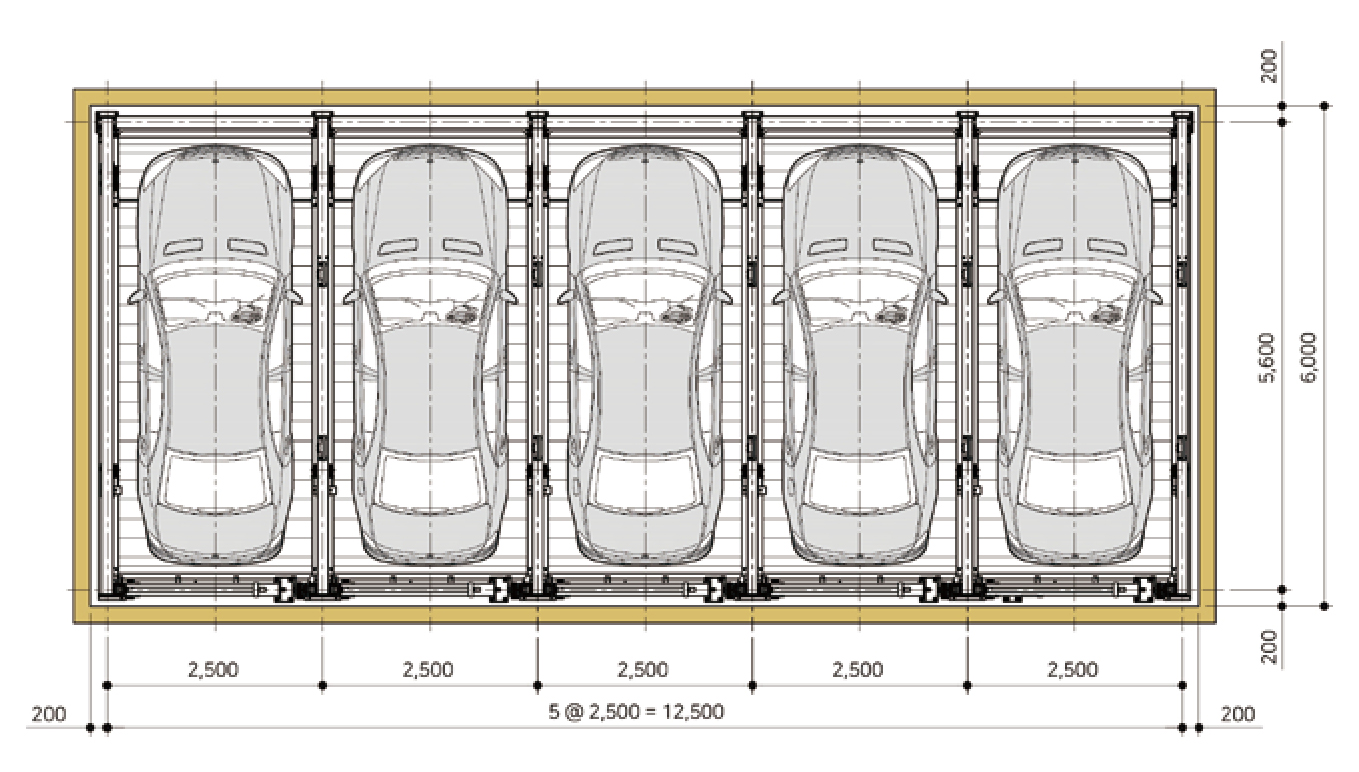

Above and Ground type / 2 Level

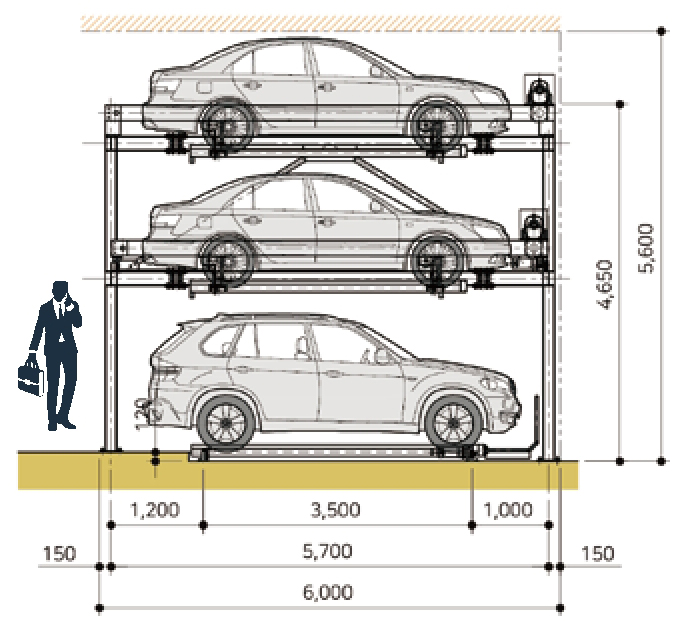

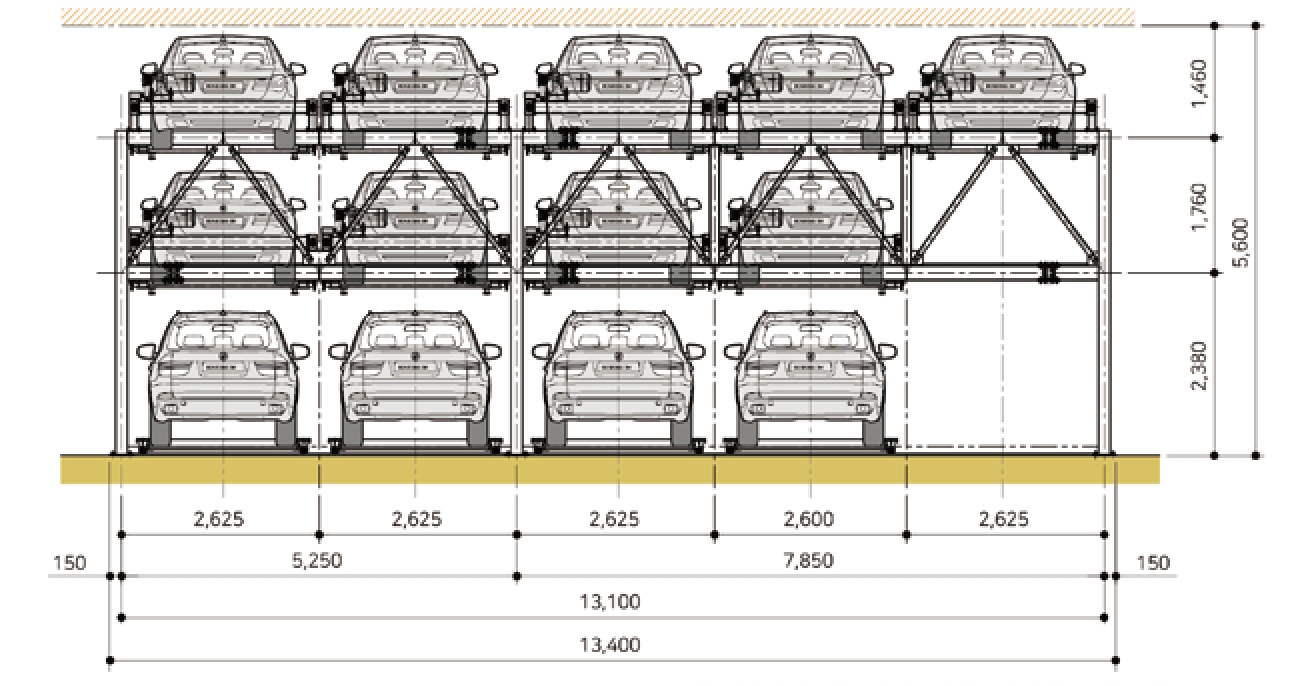

Above and Ground type / 3 Level
| SPECIFICATIONS | |||
|---|---|---|---|
| PLATFORM | GROUND | ABOVE | |
| DIMENSION | LENGTH | 4,800 mm | 5,160 mm |
| WIDTH | 1,900 mm | 1,900 mm | |
| HEIGHT | 1,850 mm | 1,550 mm | |
| WEIGHT | 1,850 kg | 1,850 kg | |
| LIFTING | MOTOR | 2.2 kW x 4P | |
| SPEED | APPROX. 4 m/min | ||
| SLIDING | MOTOR | 0.2 kW x 4P | |
| SPEED | APPROX. 7 m/min | ||
| POWER SOURCE | 380V × 4P x 60Hz | ||

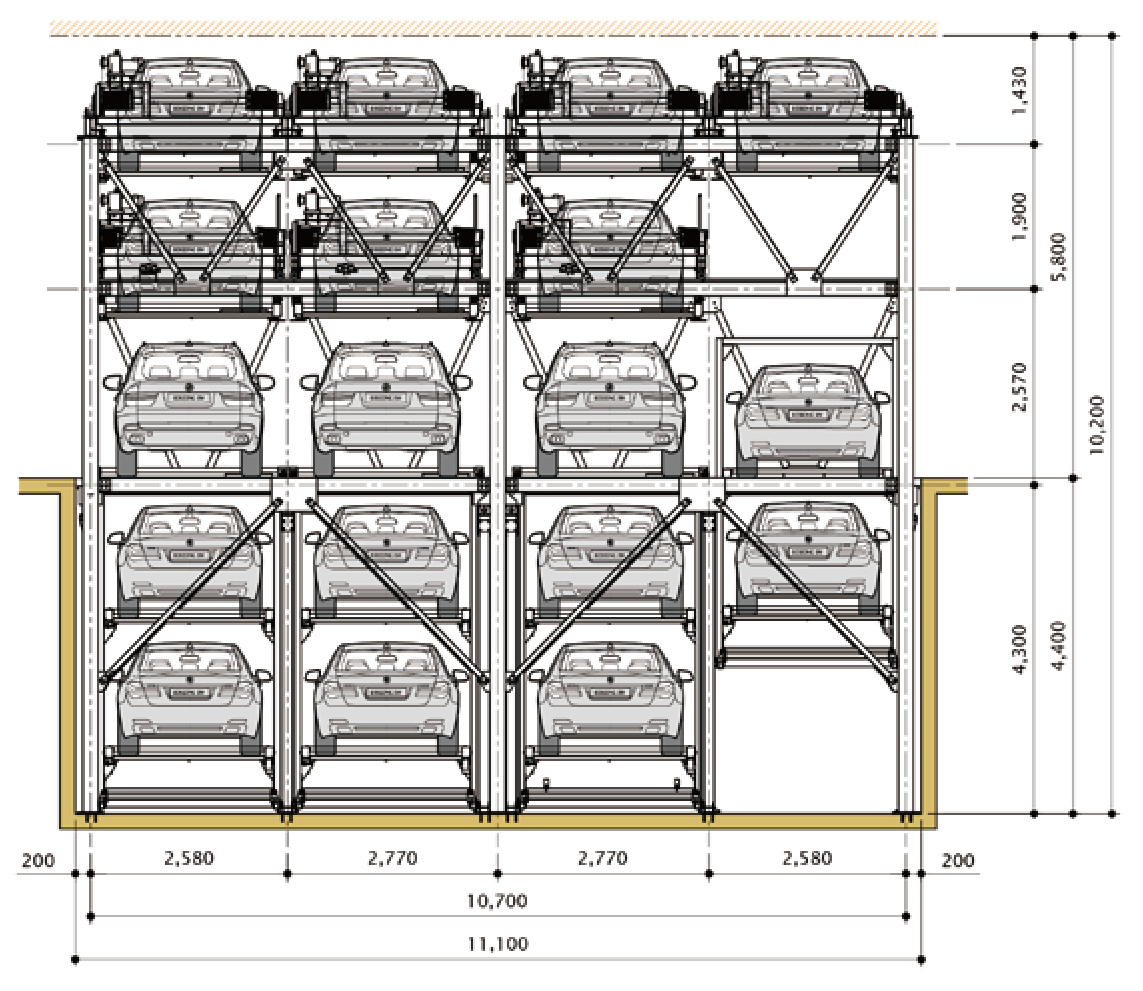

Above and Below Pit Type
| SPECIFICATIONS | |||
|---|---|---|---|
| PLATFORM | GROUND | ABOVE | |
| DIMENSION | LENGTH | 4,800 mm | 5,160 mm |
| WIDTH | 1,900 mm | 1,900 mm | |
| HEIGHT | 1,850 mm | 1,550 mm | |
| WEIGHT | 1,850 kg | 1,850 kg | |
| LIFTING | MOTOR | 2.2 kW x 4P | |
| SPEED | APPROX. 4 m/min | ||
| SLIDING | MOTOR | 0.2 kW x 4P | |
| SPEED | APPROX. 7 m/min | ||
| POWER SOURCE | 380V × 4P x 60Hz | ||

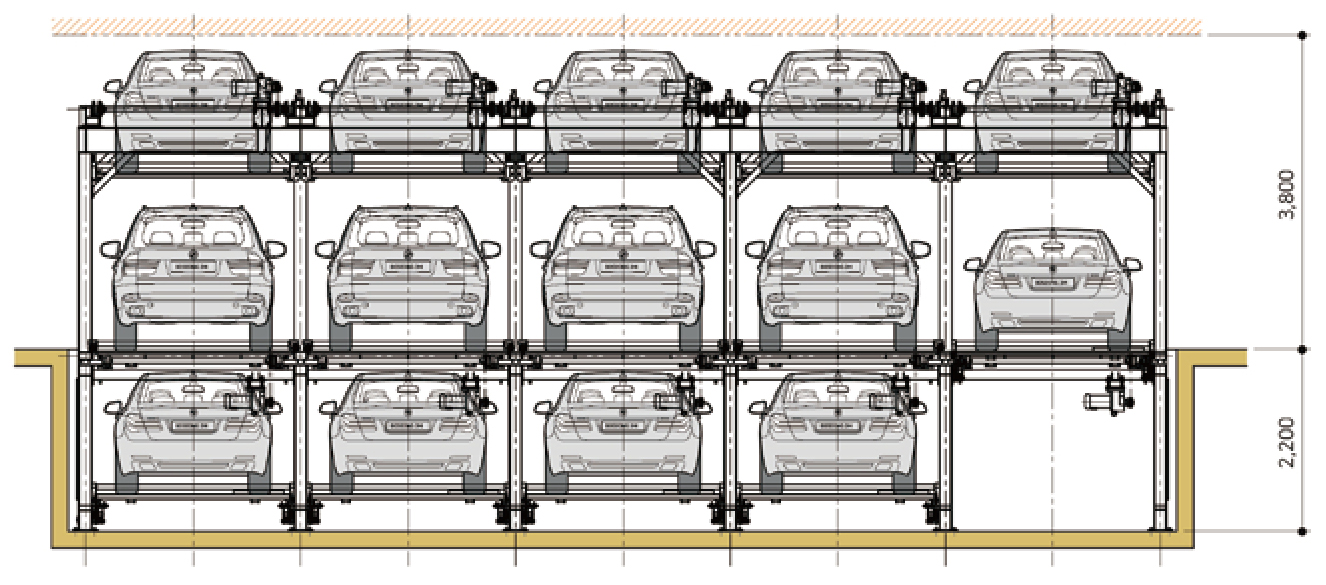

Above and Below Pit Type
| SPECIFICATIONS | |||
|---|---|---|---|
| PLATFORM | GROUND | ABOVE, PIT | |
| DIMENSION | LENGTH | 4,800 mm | 5,160 mm |
| WIDTH | 1,900 mm | 1,900 mm | |
| HEIGHT | 1,850 mm | 1,550 mm | |
| WEIGHT | 1,850 kg | 1,850 kg | |
| ABOVE LIFTING |
MOTOR | 2.2 kW x 4P | |
| SPEED | APPROX. 4 m/min | ||
| BELOW LIFTING |
MOTOR | 4.5 kW x 4P | |
| SPEED | APPROX. 4 m/min | ||
| SLIDING | MOTOR | 0.2 kW x 4P | |
| SPEED | APPROX. 7 m/min | ||
| POWER SOURCE | 380V × 4P x 60Hz | ||
